Source-linked model

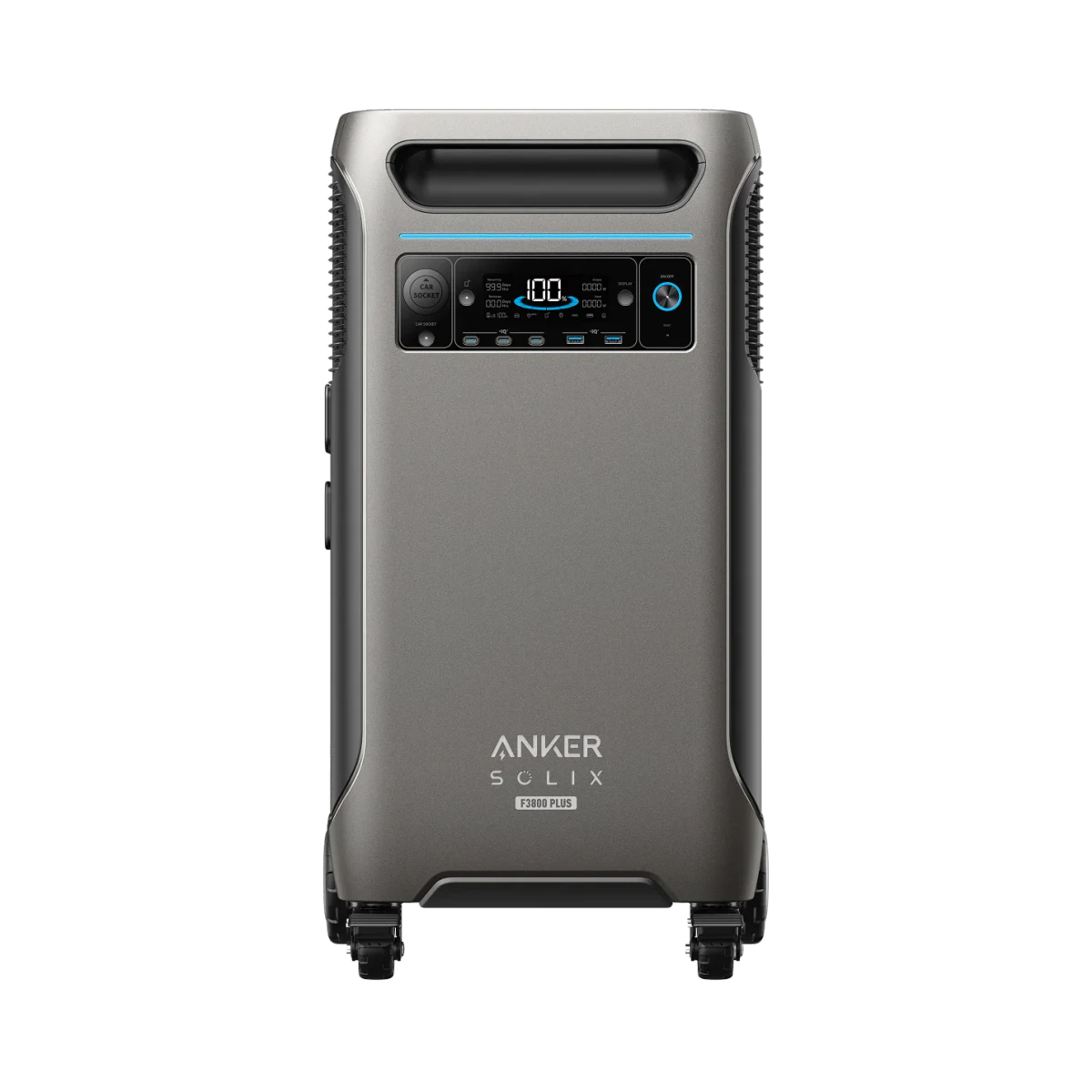

Anker SOLIX F3800 Plus Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.
Capacity3840 Wh
AC output6,000 W
Surge9,000 W
ChemistryLFP
ConfidenceVerified
Source regionglobal/general
Checked2026-06-24
Swipe table sideways
| Battery capacity | 3840 Wh |
|---|---|
| Battery chemistry | LFP |
| AC output | 6,000 W |
| Surge output | 9,000 W |
| DC output | 120 W |
| USB-C output | 100 W |
| Solar input | 3,200 W |
| Weight | 61.5 kg |
| Confidence | Verified |
| Lifecycle status | Unknown |
| Source region | global/general |
| Last verified | 2026-06-24 |
Do not interpret 12kW system language as single-unit surge; surge stores the single-unit F3800 platform surge listing.
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | 17h 48m | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | 3d 1h | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | 4d 1h | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | 10d 13h | Estimated | Use calculator |
| LED TV | 100 W at 100% | 1d 5h | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with Anker SOLIX F3800 Plus prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 3840 WhContinuous output rating (W): 6000 WSurge output rating (W): 9000 W
Estimated runtime2d 0h1d 6h – 2d 12hEstimated runtime: 2d 0h, 1d 6h – 2d 12h
Output path
Estimated runtime
2d 0hEstimated runtime: 2d 0hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Conservative1d 6h
Estimated2d 0h
Optimistic2d 12h
Conservative assumes harder conditions; optimistic assumes favorable conditions.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
- Usable energy
- 2938 Wh
- Average load
- 60 W
- Fixed station overhead
- Unknown (not included)
- Running watts
- 60 W
- Max surge
- n/a
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 3840 Wh
- Battery capacity (Wh): 3840 Wh
- Usable energy
- 2938 Wh
- 3840 Wh x 85% x 90% x 100% x 100%
- Average load
- 60 W
- 60 W running, 60 W average after duty cycle and quantity
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 2d 0h
- 2938 Wh / 60 W = 2d 0h
- 3840 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 v2
WattRunTime.com
WattRunTime estimate
Estimated runtime
2d 0hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.Usable energy2938 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative1d 6h
Estimated2d 0h
Optimistic2d 12h
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Rated battery3840 WhBattery capacity (Wh): 3840 Wh
Usable energy2938 Wh3840 Wh x 85% x 90% x 100% x 100%
Average load60 W60 W running, 60 W average after duty cycle and quantity
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime2d 0h2938 Wh / 60 W = 2d 0h
Assumptions
- 3840 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Share URL
Good fit when
- Capacity is in a larger outage/RV class, so the useful question is usually output limits, recharge speed, and weight rather than watt-hours alone.
- Tracked AC output is high enough for many household plug-in loads, but surge still needs a separate check.
- USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
- Tracked solar input is 3,200 W before panel, weather, angle, and controller losses.
Watch out for
- Surge output is tracked, but device startup behavior should still be checked against the actual load.
- Tracked weight is in a heavier class; plan where it will live before treating it as a grab-and-go station.
Related Anker SOLIX Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
Sources
- Anker SOLIX F3800 Plus product page (official; checked 2026-06-24)
- Anker SOLIX F3800 Plus technical brief (official; checked 2026-06-24)
- Anker SOLIX F3800 surge-capacity support listing (official; checked 2026-06-24)
