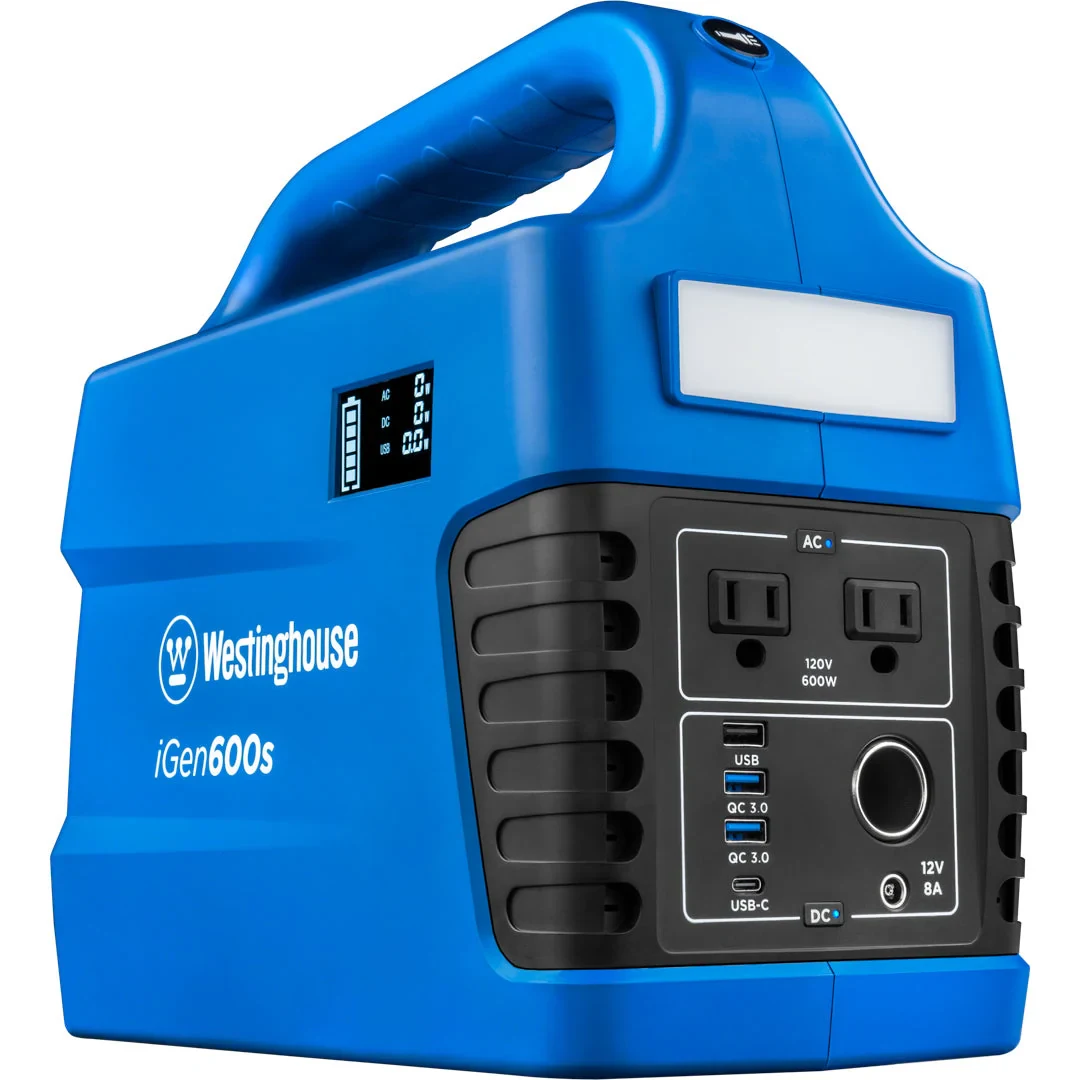

Power station modelWestinghouse iGen600s
Battery capacity (Wh): 592 WhContinuous output rating (W): 600 WSurge output rating (W): 1200 W
Source-linked model
Westinghouse iGen600s Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.
Capacity592 Wh
AC output600 W
Surge1,200 W
ChemistryLithium-Ion
ConfidenceEstimated
Source regionglobal/general
Checked2026-07-10
Swipe table sideways
| Battery capacity | 592 Wh |
|---|---|
| Battery chemistry | Lithium-Ion |
| AC output | 600 W |
| Surge output | 1,200 W |
| DC output | 96 W |
| USB-C output | 18 W |
| Solar input | unknown |
| Weight | 5.13 kg |
| Confidence | Estimated |
| Source region | global/general |
| Last verified | 2026-07-10 |
DC output uses the manual's 12V car outlet and 6mm port rating of up to 8A / 96W. Solar input stays unknown because the checked official sources list charge time and voltage caution, not a watt input limit.
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | 2h 45m | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | 11h 19m | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | 14h 59m | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | 1d 15h | Estimated | Use calculator |
| LED TV | 100 W at 100% | 4h 32m | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with Westinghouse iGen600s prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Estimated runtime7h 33m4h 43m – 9h 22mEstimated runtime: 7h 33m, 4h 43m – 9h 22m
Output path
Estimated runtime
7h 33mEstimated runtime: 7h 33mThis setup may cover a partial outage or single overnight session. Add capacity for more margin.
Usable energy453 Wh
Average load60 W
Running watts60 W
Max surgen/a
Conservative4h 43m
Estimated7h 33m
Optimistic9h 22m
Conservative assumes harder conditions; optimistic assumes favorable conditions.
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Rated battery592 WhBattery capacity (Wh): 592 Wh
Usable energy453 Wh592 Wh x 85% x 90% x 100% x 100%
Average load60 W60 W running, 60 W average after duty cycle and quantity
Estimated runtime7h 33m453 Wh / 60 W = 7h 33m
- 592 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 v2WattRunTime.com
WattRunTime estimate
Estimated runtime
7h 33mThis setup may cover a partial outage or single overnight session. Add capacity for more margin.Usable energy453 Wh
Average load60 W
Running watts60 W
Max surgen/a
Runtime range
Conservative4h 43m
Estimated7h 33m
Optimistic9h 22m
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Rated battery592 WhBattery capacity (Wh): 592 Wh
Usable energy453 Wh592 Wh x 85% x 90% x 100% x 100%
Average load60 W60 W running, 60 W average after duty cycle and quantity
Estimated runtime7h 33m453 Wh / 60 W = 7h 33m
Assumptions
- 592 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Share URL
Good fit when
- Capacity is best suited to lighter essentials such as routers, laptops, CPAP planning, lights, and smaller camping loads.
- Tracked AC output is 600 W, so high-draw appliances and tools need careful filtering.
Watch out for
- Surge output is tracked, but device startup behavior should still be checked against the actual load.
- Still unknown in the source-backed record: solar input.
- Confidence is not marked verified; keep the linked source context visible before making a purchase or emergency plan.
Related Westinghouse Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
Sources
- Westinghouse iGen600s product specifications (official; checked 2026-07-10)
- Westinghouse iGen600s user manual (official; checked 2026-07-10)
