Jackery Explorer 600 v2 Runtime Calculator

Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.

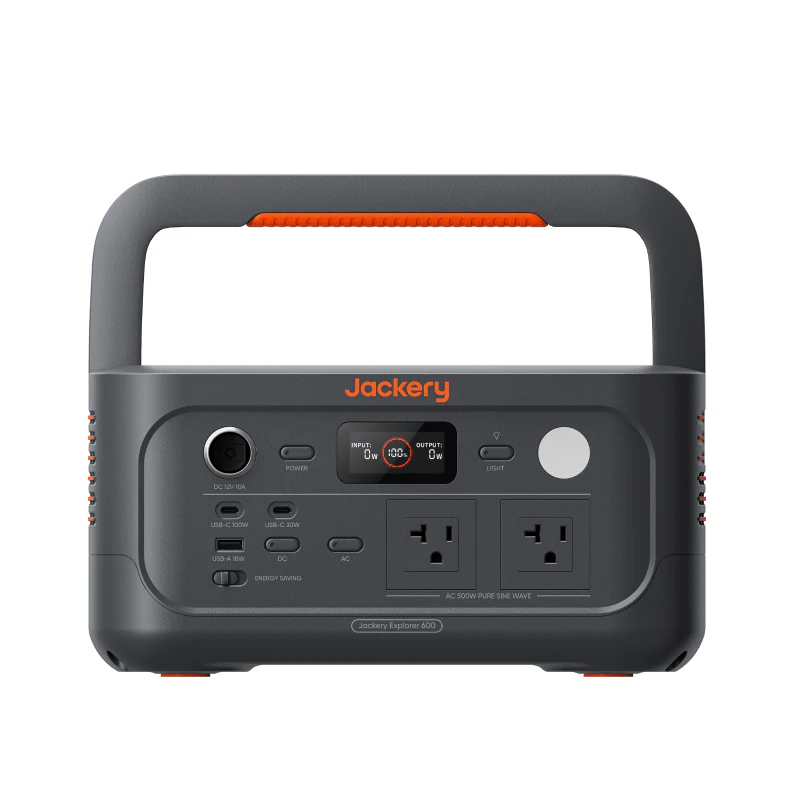

Jackery Explorer 600 v2 portable power station
Capacity640 Wh
AC output500 W
Surge1,000 W
ChemistryLiFePO4
ConfidenceVerified
Source regionglobal/general
Checked2026-06-24
Swipe table sideways
Key specifications for Jackery Explorer 600 v2.
Battery capacity640 Wh
Battery chemistryLiFePO4
AC output500 W
Surge output1,000 W
DC output120 W
USB-C output100 W
Solar input200 W
Weight6.4 kg
ConfidenceVerified
Lifecycle statusUnknown
Source regionglobal/general
Last verified2026-06-24
Weight comes from Jackery's 600 v2 comparison guide because the main product page does not expose the full table consistently.

Runtime Starting Points

These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.

Swipe table sideways
Runtime starting-point estimates for Jackery Explorer 600 v2.
ScenarioDefault loadEstimateScenario confidenceStation page
Full-size refrigerator500 W at 33%2h 58mEstimatedOpen estimate
CPAP without heated humidifier40 W at 100%12h 14mEstimatedOpen estimate
Starlink Mini32 W at 100%16h 12mEstimatedOpen estimate
Wi-Fi router12 W at 100%1d 18hEstimatedOpen estimate
LED TV100 W at 100%4h 54mEstimatedOpen estimate

Open calculator with this station

Calculator for this station

Adjust watts, duty cycle, reserve, output path, and startup surge with Jackery Explorer 600 v2 prefilled from the source-linked specs above.

Loading calculatorPreparing calculator
Power station model
Battery capacity (Wh): 640 WhContinuous output rating (W): 500 WSurge output rating (W): 1000 W
Jackery Explorer 600 v2
Estimated runtime8h 10m5h 6m – 10h 8mEstimated runtime: 8h 10m, 5h 6m – 10h 8m
Output path

Estimated runtime

8h 10mEstimated runtime: 8h 10m

This setup may cover a partial outage or single overnight session. Add capacity for more margin.

Conservative5h 6m
Estimated8h 10m
Optimistic10h 8m

Conservative assumes harder conditions; optimistic assumes favorable conditions.

  • This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Usable energy
490 Wh
Average load
60 W
Fixed station overhead
Unknown (not included)
Running watts
60 W
Max surge
n/a

Show your work

Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.

Rated battery
640 Wh
Battery capacity (Wh): 640 Wh
Usable energy
490 Wh
640 Wh x 85% x 90% x 100% x 100%
Average load
60 W
60 W running, 60 W average after duty cycle and quantity
Fixed station overhead
Unknown (not included)
60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime
8h 10m
490 Wh / 60 W = 8h 10m
  • 640 Wh nominal battery capacity
  • AC inverter output path
  • 85% conversion efficiency
  • 10% reserve kept unused
  • 60 W average load from 1 load
  • 100% battery health
  • 0% temperature loss
  • Fixed station overhead unknown; not included

This link contains the numeric values you entered, but not custom load names.

Source-Backed Next Steps

WattRunTime.com

WattRunTime estimate

Estimated runtime

8h 10mThis setup may cover a partial outage or single overnight session. Add capacity for more margin.
Usable energy490 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a

Runtime range

Conservative5h 6m
Estimated8h 10m
Optimistic10h 8m

Show your work

Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.

Rated battery640 WhBattery capacity (Wh): 640 Wh
Usable energy490 Wh640 Wh x 85% x 90% x 100% x 100%
Average load60 W60 W running, 60 W average after duty cycle and quantity
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime8h 10m490 Wh / 60 W = 8h 10m

Assumptions

  • 640 Wh nominal battery capacity
  • AC inverter output path
  • 85% conversion efficiency
  • 10% reserve kept unused
  • 60 W average load from 1 load
  • 100% battery health
  • 0% temperature loss
  • Fixed station overhead unknown; not included

Warnings

  • This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.

Good fit when

  • Capacity is best suited to lighter essentials such as routers, laptops, CPAP planning, lights, and smaller camping loads.
  • Tracked AC output is 500 W, so high-draw appliances and tools need careful filtering.
  • USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
  • Tracked solar input is 200 W before panel, weather, angle, and controller losses.

Watch out for

  • Surge output is tracked, but device startup behavior should still be checked against the actual load.
