Jackery Explorer 5000 Plus Runtime Calculator

Quick answer: the Jackery Explorer 5000 Plus stores 5,040 Wh and delivers up to 7,200 W of continuous AC power. Under this site's planning assumptions (85% inverter efficiency, 10% reserve), a steady 100 W AC load runs for roughly 38.6 hours. Last source check: 2026-08-21. This is an estimate, not a guarantee.

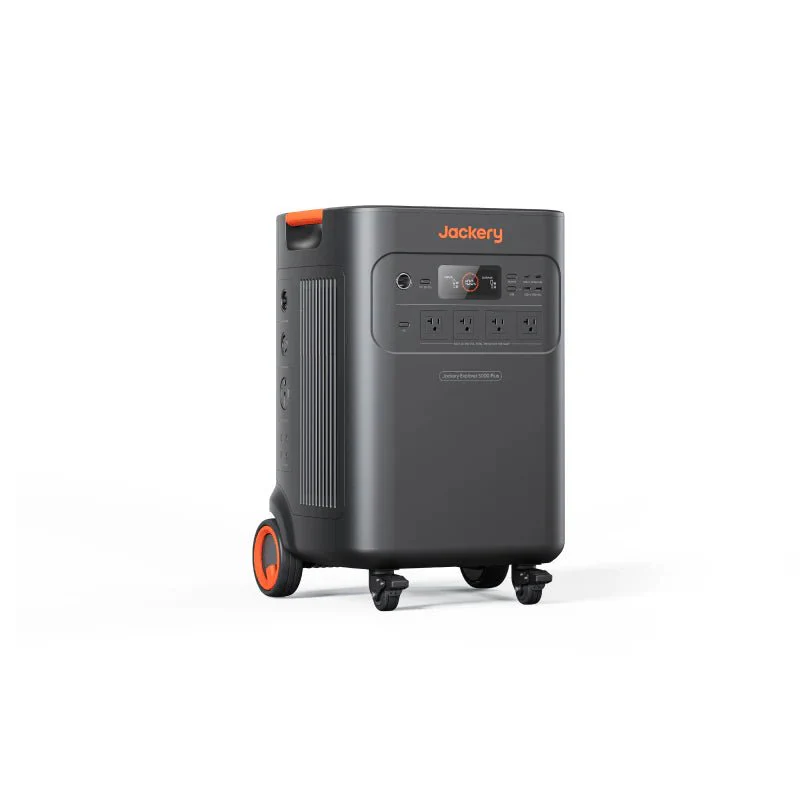

Jackery Explorer 5000 Plus portable power station
Battery capacity5,040 Wh
AC output7,200 W
Surge output14,400 W
Battery chemistryLiFePO4
ConfidenceEstimated
Source regionGlobal/general sources
checked2026-08-21
Swipe table sideways
Jackery Explorer 5000 Plus: Key facts
Battery capacity5,040 Wh
Battery chemistryLiFePO4
AC output7,200 W
Surge output14,400 W
DC output120 W
USB-C output100 W
Solar input4,000 W
Weight61 kg
ConfidenceEstimated
Lifecycle statusUnknown
Source regionGlobal/general sources
Last verified2026-08-21
Catalog notes (original English)

The exact manual and current product page publish 7200W rated / 14400W surge, while the current support table lists 7200W as maximum instantaneous output. The record follows the manual/product page and remains estimated until Jackery reconciles the conflict. Solar input stores the 4000W high-voltage roof-PV ceiling; the two low-voltage DC8020 ports are separately capped at 21A/1200W.

Measurement Records

Third-party results apply to the listed model, output path and test load. The delta is against a fixed no-reserve planning formula, not an error score or a prediction at other loads. Missing test conditions remain unknown.

Swipe table sideways
Measurement Records: Jackery Explorer 5000 Plus
TestMeasureddefault planning estimateVs estimateSource
Capacity test (AC)
Average test load: unknown
test date unknown		4,450 Wh
88%		4,284 Wh+166 Wh (+4%)HoboTech Jackery Explorer 5000 Plus review
2024-11-25; accessed 2026-09-04
How To Use Measured Data

Runtime estimate

Formula starting points use each scenario’s default watts, duty cycle and output path, with 10% reserve or 15% for CPAP. Linked detail pages use the same inputs. Hours apply only if the device can run and start; they are not measured runtimes.

Swipe table sideways
Runtime estimate
Device scenarioPlanning defaultEstimated runtimeDevice scenario: ConfidenceModels
Full-size refrigerator500 W · 33% · AC inverter · Reserve: 10%23h 22m
Within the tracked power limits; compatibility still needs checking		EstimatedOpen estimate
CPAP without heated humidifier40 W · 100% · AC inverter · Reserve: 15%3d 19h
Within the tracked power limits; compatibility still needs checking		EstimatedOpen estimate
Starlink Mini32 W · 100% · USB-C PD · Reserve: 10%5d 10h
Within the tracked power limits; compatibility still needs checking		EstimatedOpen estimate
Wi-Fi router12 W · 100% · AC inverter · Reserve: 10%13d 20h
Within the tracked power limits; compatibility still needs checking		EstimatedOpen estimate
LED TV100 W · 100% · AC inverter · Reserve: 10%1d 14h
Within the tracked power limits; compatibility still needs checking		EstimatedOpen estimate
Adjust these assumptions in the runtime calculator

Runtime calculator

Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.

Loading calculatorPreparing calculator
Power station model
Battery capacity (Wh): 5040 WhContinuous output rating (W): 7200 WSurge output rating (W): 14400 W
Jackery Explorer 5000 Plus
Estimated runtime2d 16h1d 16h – 3d 7hEstimated runtime: 2d 16h, 1d 16h – 3d 7h
Output path

Estimated runtime

Within the tracked power limits; compatibility still needs checking

This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior. Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.

2d 16hEstimated runtime: 2d 16h

This setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.

Conservative1d 16h
Estimated2d 16h
Optimistic3d 7h

These are calculated sensitivity cases, not a statistical confidence interval. Conservative uses lower efficiency and battery health, more reserve/temperature loss and higher load; optimistic changes these assumptions in the opposite direction.

  • This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior. Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
  • Within the tracked power limits; compatibility still needs checking

Show your work

Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.

Rated battery
5040 Wh
Usable energy
3856 Wh
5040 Wh x 85% x 90% x 100% x 100%
Running watts
60 W
Average load
60 W
Max surge
n/a
Fixed station overhead
Unknown (not included)
60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime
2d 16h
3856 Wh / 60 W = 2d 16h
Output path
AC inverter
Efficiency (%)
85
Reserve kept unused (%)
10
Battery health (%)
100
Cold weather loss (%)
0

This link contains the numeric values you entered, but not custom load names.

Source-Backed Next Steps

WattRunTime.com

WattRunTime estimate

Estimated runtime

2d 16hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Usable energy3856 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a

Runtime range

Conservative1d 16h
Estimated2d 16h
Optimistic3d 7h

Show your work

Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.

Usable energy3856 Wh5040 Wh x 85% x 90% x 100% x 100%
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime2d 16h3856 Wh / 60 W = 2d 16h

Assumptions

  • 5040 Wh nominal battery capacity
  • AC inverter output path
  • 85% conversion efficiency
  • 10% reserve kept unused
  • 60 W average load from 1 load
  • 100% battery health
  • 0% temperature loss
  • Fixed station overhead unknown; not included

Warnings

  • This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior. Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
  • Within the tracked power limits; compatibility still needs checking

Planning notes

  • Capacity class: 5,040 Wh. Size the battery for your measured average load and required hours, including reserve.
  • Tracked output: 7,200 W. Compare both running demand and startup demand before using any runtime estimate.
  • Solar input limit: 4,000 W. Actual refill depends on panel voltage/current compatibility, sunlight, angle and charging losses.

Known data gaps

  • Unverified or missing specifications remain visible. The confidence label describes the station record, not a tested runtime or approval for emergency use.
  • Weight: 61 kg. Check the complete carrying setup, cables and battery extensions before choosing this model for travel.
  • unknown: —

Models: Jackery

Compare nearby capacity records from the same brand, then check output, weight and missing fields. A larger battery does not establish device compatibility.
