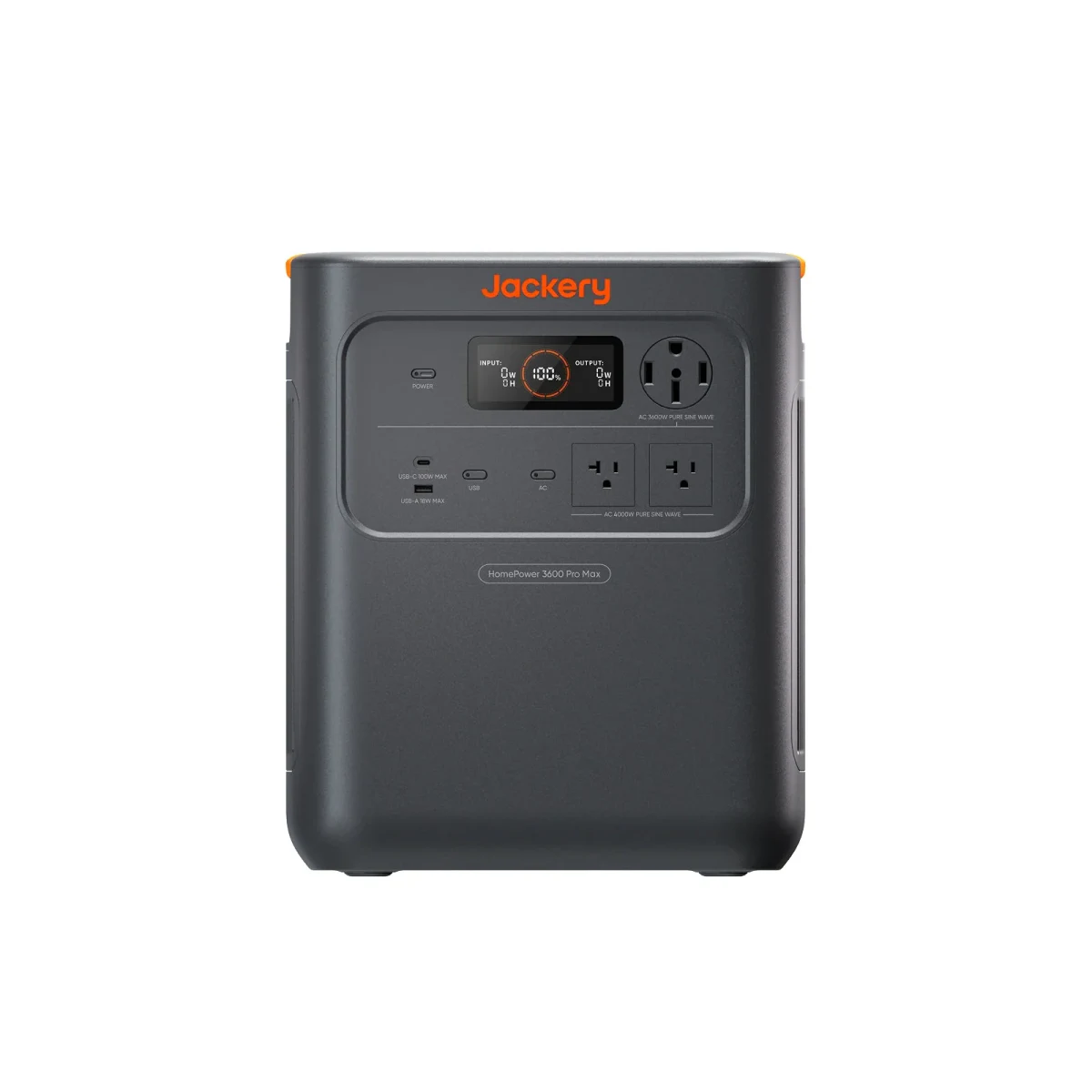

Jackery HomePower 3600 Pro Max Runtime Calculator
Quick answer: the Jackery HomePower 3600 Pro Max stores 3,584 Wh and delivers up to 2,000 W of continuous AC power. Under this site's planning assumptions (85% inverter efficiency, 10% reserve), a steady 100 W AC load runs for roughly 27.4 hours. Last source check: 2026-08-07. This is an estimate, not a guarantee.
Battery capacity3,584 Wh
AC output2,000 W
Surge output4,000 W
Battery chemistryLiFePO4
ConfidenceEstimated
Source regionGlobal/general sources
checked2026-08-07
Swipe table sideways
| Battery capacity | 3,584 Wh |
|---|---|
| Battery chemistry | LiFePO4 |
| AC output | 2,000 W |
| Surge output | 4,000 W |
| DC output | not available |
| USB-C output | 100 W |
| Solar input | unknown |
| Weight | 33.5 kg |
| Confidence | Estimated |
| Lifecycle status | Unknown |
| Source region | Global/general sources |
| Last verified | 2026-08-07 |
Catalog notes (original English)
AC values use the published 120V figures (2000W rated, 4000W surge peak), matching how a normal household 120V appliance is limited on this unit. The same official table lists 4000W rated and 8000W surge peak at 240V through the NEMA 14-50R outlet. Solar input stays unknown because the checked table publishes a 36.4-50.4V/126A DC input range without a watt limit, and the listed output ports include no 12V DC load socket.
Runtime estimate
Formula starting points use each scenario’s default watts, duty cycle and output path, with 10% reserve or 15% for CPAP. Linked detail pages use the same inputs. Hours apply only if the device can run and start; they are not measured runtimes.
Swipe table sideways
| Device scenario | Planning default | Estimated runtime | Device scenario: Confidence | Models |
|---|---|---|---|---|
| Full-size refrigerator | 500 W · 33% · AC inverter · Reserve: 10% | 16h 37m Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
| CPAP without heated humidifier | 40 W · 100% · AC inverter · Reserve: 15% | 2d 16h Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
| Starlink Mini | 32 W · 100% · USB-C PD · Reserve: 10% | 3d 20h Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
| Wi-Fi router | 12 W · 100% · AC inverter · Reserve: 10% | 9d 20h Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
| LED TV | 100 W · 100% · AC inverter · Reserve: 10% | 1d 3h Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
Runtime calculator
Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 3584 WhContinuous output rating (W): 2000 WSurge output rating (W): 4000 W
Estimated runtime1d 21h1d 4h – 2d 8hEstimated runtime: 1d 21h, 1d 4h – 2d 8h
Output path
Estimated runtime
Within the tracked power limits; compatibility still needs checking
This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior. Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
1d 21hEstimated runtime: 1d 21hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Conservative1d 4h
Estimated1d 21h
Optimistic2d 8h
These are calculated sensitivity cases, not a statistical confidence interval. Conservative uses lower efficiency and battery health, more reserve/temperature loss and higher load; optimistic changes these assumptions in the opposite direction.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior. Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
- Within the tracked power limits; compatibility still needs checking
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 3584 Wh
- Usable energy
- 2742 Wh
- 3584 Wh x 85% x 90% x 100% x 100%
- Running watts
- 60 W
- Average load
- 60 W
- Max surge
- n/a
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 1d 21h
- 2742 Wh / 60 W = 1d 21h
- Output path
- AC inverter
- Efficiency (%)
- 85
- Reserve kept unused (%)
- 10
- Battery health (%)
- 100
- Cold weather loss (%)
- 0
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 Plus
WattRunTime.com
WattRunTime estimate
Estimated runtime
1d 21hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.Usable energy2742 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative1d 4h
Estimated1d 21h
Optimistic2d 8h
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Usable energy2742 Wh3584 Wh x 85% x 90% x 100% x 100%
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime1d 21h2742 Wh / 60 W = 1d 21h
Assumptions
- 3584 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior. Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
- Within the tracked power limits; compatibility still needs checking
Share URL
Planning notes
- Capacity class: 3,584 Wh. Size the battery for your measured average load and required hours, including reserve.
- Tracked output: 2,000 W. Compare both running demand and startup demand before using any runtime estimate.
- Solar input limit: unknown. Actual refill depends on panel voltage/current compatibility, sunlight, angle and charging losses.
Known data gaps
- Unverified or missing specifications remain visible. The confidence label describes the station record, not a tested runtime or approval for emergency use.
- Weight: 33.5 kg. Check the complete carrying setup, cables and battery extensions before choosing this model for travel.
- unknown: Solar input
Models: Jackery
Compare nearby capacity records from the same brand, then check output, weight and missing fields. A larger battery does not establish device compatibility.
Jackery HomePower 3600 Plus
3,584 Wh · AC output: 3,600 W · Confidence: Verified
Jackery HomePower 3000
3,072 Wh · AC output: 3,600 W · Confidence: Verified
Jackery Explorer 3000 v2
3,072 Wh · AC output: 3,600 W · Confidence: Estimated
Sources
- Jackery HomePower 3600 Pro Max product specifications (Official; checked 2026-08-07)
