Source-linked model

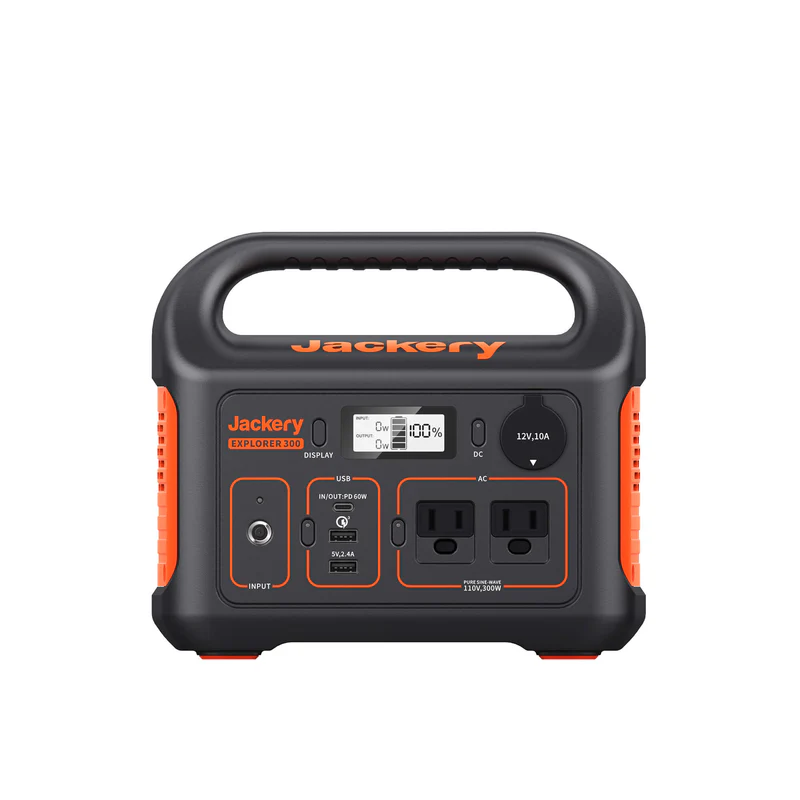

Jackery Explorer 300 Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.
Capacity293 Wh
AC output300 W
Surge500 W
ChemistryLi-ion NMC
ConfidenceVerified
Source regionglobal/general
Checked2026-06-25
Swipe table sideways
| Battery capacity | 293 Wh |
|---|---|
| Battery chemistry | Li-ion NMC |
| AC output | 300 W |
| Surge output | 500 W |
| DC output | 120 W |
| USB-C output | 60 W |
| Solar input | 90 W |
| Weight | 3.2 kg |
| Confidence | Verified |
| Lifecycle status | Unknown |
| Source region | global/general |
| Last verified | 2026-06-25 |
Third-party measured tests
These are published third-party measurements for this model. The delta compares measured delivered Wh with WattRunTime's default no-reserve planning estimate for the same output path; it is not a new measurement.
Swipe table sideways
| Test | Measured | Default estimate | Vs estimate | Source |
|---|---|---|---|---|
| Capacity test (AC) test date unknown | 260 Wh 89% usable | 249 Wh | +11 Wh (+4%) | OutdoorGearLab Best Power Stations of 2026 accessed 2026-07-02 |
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | above tracked AC output | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | 5h 36m | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | 7h 25m | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | 19h 20m | Estimated | Use calculator |
| LED TV | 100 W at 100% | 2h 14m | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with Jackery Explorer 300 prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 293 WhContinuous output rating (W): 300 WSurge output rating (W): 500 W
Estimated runtime3h 44m2h 20m – 4h 38mEstimated runtime: 3h 44m, 2h 20m – 4h 38m
Output path
Estimated runtime
3h 44mEstimated runtime: 3h 44mThis setup is tight. Reduce load, use DC where possible, or choose a larger station.
Conservative2h 20m
Estimated3h 44m
Optimistic4h 38m
Conservative assumes harder conditions; optimistic assumes favorable conditions.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
- Usable energy
- 224 Wh
- Average load
- 60 W
- Fixed station overhead
- Unknown (not included)
- Running watts
- 60 W
- Max surge
- n/a
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 293 Wh
- Battery capacity (Wh): 293 Wh
- Usable energy
- 224 Wh
- 293 Wh x 85% x 90% x 100% x 100%
- Average load
- 60 W
- 60 W running, 60 W average after duty cycle and quantity
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 3h 44m
- 224 Wh / 60 W = 3h 44m
- 293 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 v2
WattRunTime.com
WattRunTime estimate
Estimated runtime
3h 44mThis setup is tight. Reduce load, use DC where possible, or choose a larger station.Usable energy224 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative2h 20m
Estimated3h 44m
Optimistic4h 38m
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Rated battery293 WhBattery capacity (Wh): 293 Wh
Usable energy224 Wh293 Wh x 85% x 90% x 100% x 100%
Average load60 W60 W running, 60 W average after duty cycle and quantity
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime3h 44m224 Wh / 60 W = 3h 44m
Assumptions
- 293 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Share URL
Good fit when
- Capacity is a compact class; use it for small electronics and short essentials rather than high-wattage appliances.
- Tracked AC output is 300 W, so high-draw appliances and tools need careful filtering.
- USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
- Tracked solar input is 90 W before panel, weather, angle, and controller losses.
Watch out for
- Surge output is tracked, but device startup behavior should still be checked against the actual load.
Related Jackery Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
Explorer 300 Plus
288 Wh, 300 W AC output, confidence: Verified.
Explorer 300 v2
288 Wh, 300 W AC output, confidence: Verified.
Explorer 300D
288 Wh, unknown AC output, confidence: Verified.
Sources
- Jackery Explorer 300 product page (official; checked 2026-06-25)
