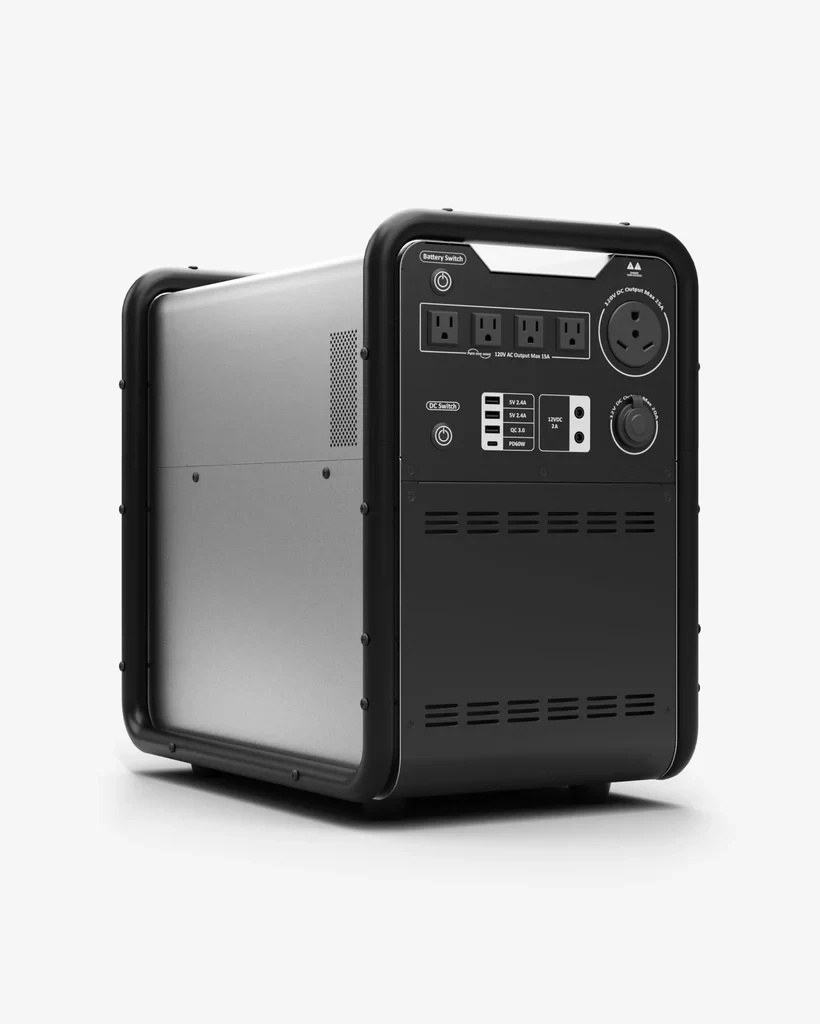

Hysolis MPS3K Runtime Calculator
Quick answer: the Hysolis MPS3K stores 4,500 Wh and delivers up to 3,000 W of continuous AC power. Under this site's planning assumptions (85% inverter efficiency, 10% reserve), a steady 100 W AC load runs for roughly 34.4 hours. Last source check: 2026-08-21. This is an estimate, not a guarantee.
Battery capacity4,500 Wh
AC output3,000 W
Surge output6,000 W
Battery chemistryLithium-ion (NCM)
ConfidenceVerified
Source regionGlobal/general sources
checked2026-08-21
Swipe table sideways
| Battery capacity | 4,500 Wh |
|---|---|
| Battery chemistry | Lithium-ion (NCM) |
| AC output | 3,000 W |
| Surge output | 6,000 W |
| DC output | 240 W |
| USB-C output | 60 W |
| Solar input | 1,500 W |
| Weight | 55 kg |
| Confidence | Verified |
| Lifecycle status | Unknown |
| Source region | Global/general sources |
| Last verified | 2026-08-21 |
Catalog notes (original English)
DC stores the highest explicit single path, the 240W 12V/20A output; lower-power 12V sockets are not summed. The 60W USB-C value is published directly by the manual. The formal charging table says default 1kW adjustable 0-1kW while nearby marketing copy says 1,200W AC charging; charging-input power is not modeled here.
Runtime estimate
Formula starting points use each scenario’s default watts, duty cycle and output path, with 10% reserve or 15% for CPAP. Linked detail pages use the same inputs. Hours apply only if the device can run and start; they are not measured runtimes.
Swipe table sideways
| Device scenario | Planning default | Estimated runtime | Device scenario: Confidence | Models |
|---|---|---|---|---|
| Full-size refrigerator | 500 W · 33% · AC inverter · Reserve: 10% | 20h 52m Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
| CPAP without heated humidifier | 40 W · 100% · AC inverter · Reserve: 15% | 3d 9h Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
| Starlink Mini | 32 W · 100% · USB-C PD · Reserve: 10% | 4d 20h Exceeds a tracked power limit — do not rely on these hours | Estimated | Calculator |
| Wi-Fi router | 12 W · 100% · AC inverter · Reserve: 10% | 12d 9h Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
| LED TV | 100 W · 100% · AC inverter · Reserve: 10% | 1d 10h Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
Runtime calculator
Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 4500 WhContinuous output rating (W): 3000 WSurge output rating (W): 6000 W
Estimated runtime2d 9h1d 11h – 2d 23hEstimated runtime: 2d 9h, 1d 11h – 2d 23h
Output path
Estimated runtime
Within the tracked power limits; compatibility still needs checking
This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior. Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
2d 9hEstimated runtime: 2d 9hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Conservative1d 11h
Estimated2d 9h
Optimistic2d 23h
These are calculated sensitivity cases, not a statistical confidence interval. Conservative uses lower efficiency and battery health, more reserve/temperature loss and higher load; optimistic changes these assumptions in the opposite direction.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior. Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
- Within the tracked power limits; compatibility still needs checking
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 4500 Wh
- Usable energy
- 3443 Wh
- 4500 Wh x 85% x 90% x 100% x 100%
- Running watts
- 60 W
- Average load
- 60 W
- Max surge
- n/a
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 2d 9h
- 3443 Wh / 60 W = 2d 9h
- Output path
- AC inverter
- Efficiency (%)
- 85
- Reserve kept unused (%)
- 10
- Battery health (%)
- 100
- Cold weather loss (%)
- 0
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 Plus
WattRunTime.com
WattRunTime estimate
Estimated runtime
2d 9hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.Usable energy3443 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative1d 11h
Estimated2d 9h
Optimistic2d 23h
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Usable energy3443 Wh4500 Wh x 85% x 90% x 100% x 100%
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime2d 9h3443 Wh / 60 W = 2d 9h
Assumptions
- 4500 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior. Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
- Within the tracked power limits; compatibility still needs checking
Share URL
Planning notes
- Capacity class: 4,500 Wh. Size the battery for your measured average load and required hours, including reserve.
- Tracked output: 3,000 W. Compare both running demand and startup demand before using any runtime estimate.
- Solar input limit: 1,500 W. Actual refill depends on panel voltage/current compatibility, sunlight, angle and charging losses.
Known data gaps
- Unverified or missing specifications remain visible. The confidence label describes the station record, not a tested runtime or approval for emergency use.
- Weight: 55 kg. Check the complete carrying setup, cables and battery extensions before choosing this model for travel.
- unknown: —
Models: Hysolis
Compare nearby capacity records from the same brand, then check output, weight and missing fields. A larger battery does not establish device compatibility.
Hysolis Apollo 5K
5,376 Wh · AC output: 3,000 W · Confidence: Verified
Sources
- Hysolis MPS3K-4500Wh user manual (Official; checked 2026-08-21)
- Hysolis MPS3K product specifications (Official; checked 2026-08-21)
