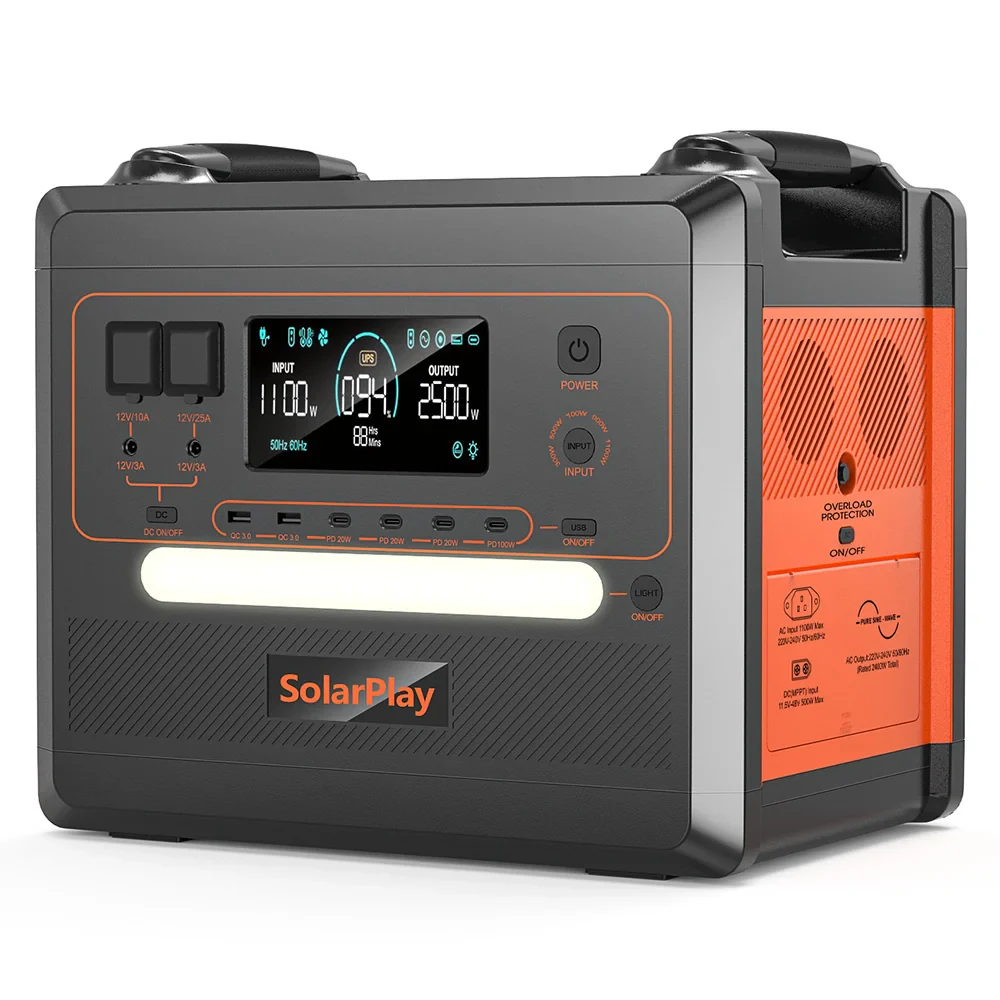

SolarPlay Q2402M Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.
Quick answer: the SolarPlay Q2402M stores 2,304 Wh and delivers up to 2,500 W of continuous AC power. Under this site's planning assumptions (85% inverter efficiency, 10% reserve), a steady 100 W AC load runs for roughly 17.6 hours. Last source check: 2026-08-27. This is an estimate, not a guarantee.
Capacity2304 Wh
AC output2,500 W
Surgeunknown
ChemistryLiFePO4
ConfidenceEstimated
Source regionglobal/general
Checked2026-08-27
Swipe table sideways
| Battery capacity | 2304 Wh |
|---|---|
| Battery chemistry | LiFePO4 |
| AC output | 2,500 W |
| Surge output | unknown |
| DC output | unknown |
| USB-C output | 100 W |
| Solar input | 500 W |
| Weight | 21.8 kg |
| Confidence | Estimated |
| Lifecycle status | Unknown |
| Source region | global/general |
| Last verified | 2026-08-27 |
SolarPlay has no reachable first-party storefront, so this record uses a retailer-published copy of the manufacturer specification table and stays at estimated confidence. Surge and DC ceilings stay unknown because the table publishes no peak AC figure and gives DC ports as current profiles.
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | 10h 41m | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | 1d 20h | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | 2d 10h | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | 6d 8h | Estimated | Use calculator |
| LED TV | 100 W at 100% | 17h 38m | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with SolarPlay Q2402M prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 2304 WhContinuous output rating (W): 2500 WSurge output rating (W): n/a
Estimated runtime1d 5h18h 23m – 1d 12hEstimated runtime: 1d 5h, 18h 23m – 1d 12h
Output path
Estimated runtime
1d 5hEstimated runtime: 1d 5hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Conservative18h 23m
Estimated1d 5h
Optimistic1d 12h
Conservative assumes harder conditions; optimistic assumes favorable conditions.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 2304 Wh
- Usable energy
- 1763 Wh
- 2304 Wh x 85% x 90% x 100% x 100%
- Running watts
- 60 W
- Average load
- 60 W
- Max surge
- n/a
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 1d 5h
- 1763 Wh / 60 W = 1d 5h
- Output path
- AC inverter
- Efficiency (%)
- 85
- Reserve kept unused (%)
- 10
- Battery health (%)
- 100
- Cold weather loss (%)
- 0
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 Plus
WattRunTime.com
WattRunTime estimate
Estimated runtime
1d 5hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.Usable energy1763 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative18h 23m
Estimated1d 5h
Optimistic1d 12h
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Usable energy1763 Wh2304 Wh x 85% x 90% x 100% x 100%
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime1d 5h1763 Wh / 60 W = 1d 5h
Assumptions
- 2304 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Share URL
Good fit when
- Capacity is in a larger outage/RV class, so the useful question is usually output limits, recharge speed, and weight rather than watt-hours alone.
- Tracked AC output is high enough for many household plug-in loads, but surge still needs a separate check.
- USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
- Tracked solar input is 500 W before panel, weather, angle, and controller losses.
Watch out for
- Surge output is unknown, so do not assume compressor, pump, or power-tool startup will work.
- Still unknown in the source-backed record: surge output, dc output.
- Confidence is not marked verified; keep the linked source context visible before making a purchase or emergency plan.
Related SolarPlay Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
Q2501
2,160 Wh, 2,400 W AC output, confidence: Estimated.
Sources
- SolarPlay Q2402M specification table published by retailer OOLACTIVE (retailer; checked 2026-08-27)
