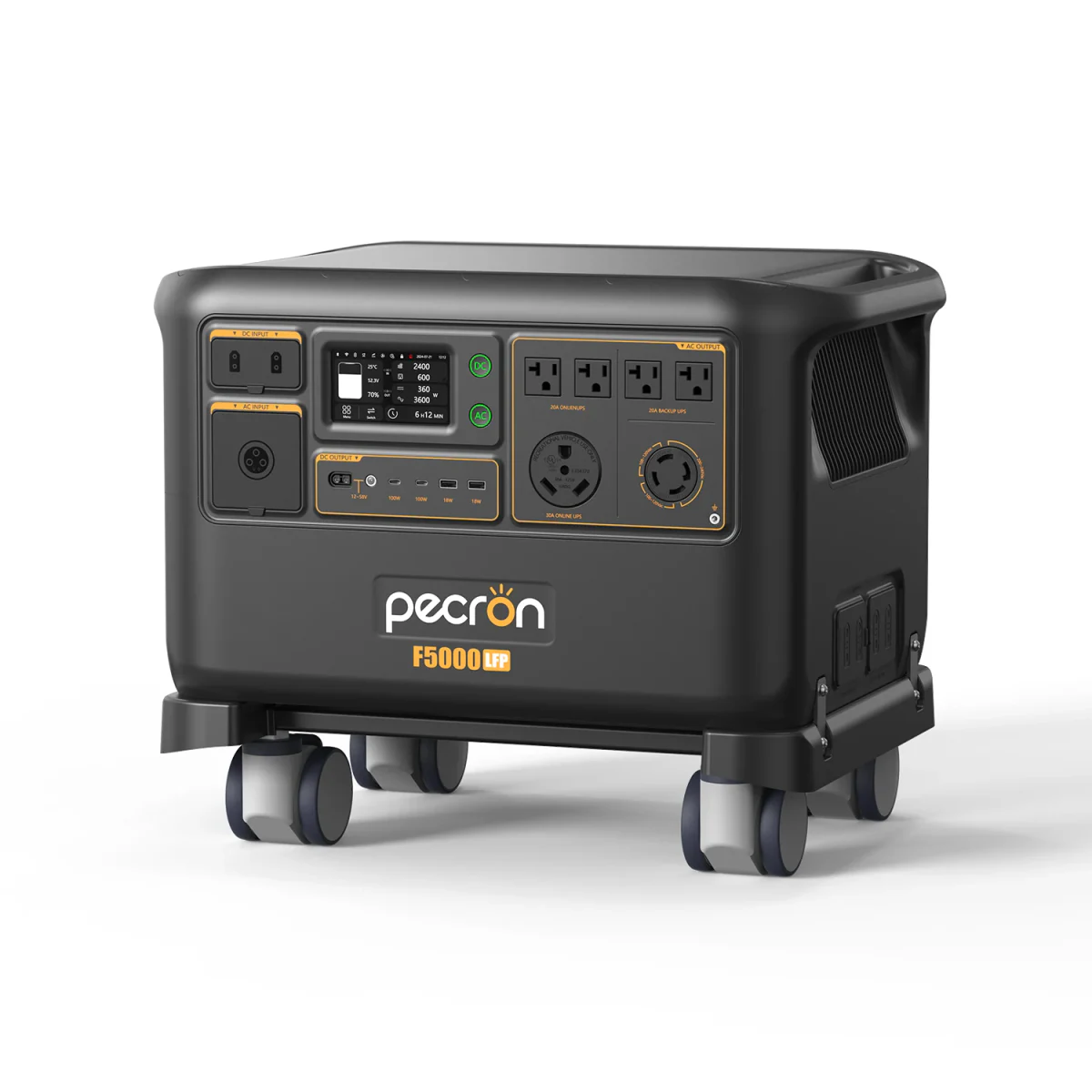

Pecron F5000LFP Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.
Capacity5120 Wh
AC output3,600 W
Surgeunknown
ChemistryLiFePO4
ConfidenceEstimated
Source regionglobal/general
Checked2026-08-07
Swipe table sideways
| Battery capacity | 5120 Wh |
|---|---|
| Battery chemistry | LiFePO4 |
| AC output | 3,600 W |
| Surge output | unknown |
| DC output | 800 W |
| USB-C output | 100 W |
| Solar input | 6,400 W |
| Weight | 56.2 kg |
| Confidence | Estimated |
| Lifecycle status | Unknown |
| Source region | global/general |
| Last verified | 2026-08-07 |
AC output stores the published 120V maximum so load-fit checks match a normal household outlet; the same source lists 7200W total at 240V. Surge stays unknown because the checked source publishes no separate peak rating. Solar input stores the published 6400W total across the two 3200W inputs.
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | 23h 44m | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | 4d 1h | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | 5d 9h | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | 14d 1h | Estimated | Use calculator |
| LED TV | 100 W at 100% | 1d 15h | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with Pecron F5000LFP prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 5120 WhContinuous output rating (W): 3600 WSurge output rating (W): n/a
Estimated runtime2d 17h1d 16h – 3d 9hEstimated runtime: 2d 17h, 1d 16h – 3d 9h
Output path
Estimated runtime
2d 17hEstimated runtime: 2d 17hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Conservative1d 16h
Estimated2d 17h
Optimistic3d 9h
Conservative assumes harder conditions; optimistic assumes favorable conditions.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
- Usable energy
- 3917 Wh
- Average load
- 60 W
- Fixed station overhead
- Unknown (not included)
- Running watts
- 60 W
- Max surge
- n/a
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 5120 Wh
- Battery capacity (Wh): 5120 Wh
- Usable energy
- 3917 Wh
- 5120 Wh x 85% x 90% x 100% x 100%
- Average load
- 60 W
- 60 W running, 60 W average after duty cycle and quantity
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 2d 17h
- 3917 Wh / 60 W = 2d 17h
- 5120 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 v2
WattRunTime.com
WattRunTime estimate
Estimated runtime
2d 17hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.Usable energy3917 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative1d 16h
Estimated2d 17h
Optimistic3d 9h
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Rated battery5120 WhBattery capacity (Wh): 5120 Wh
Usable energy3917 Wh5120 Wh x 85% x 90% x 100% x 100%
Average load60 W60 W running, 60 W average after duty cycle and quantity
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime2d 17h3917 Wh / 60 W = 2d 17h
Assumptions
- 5120 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Share URL
Good fit when
- Capacity is in a larger outage/RV class, so the useful question is usually output limits, recharge speed, and weight rather than watt-hours alone.
- Tracked AC output is high enough for many household plug-in loads, but surge still needs a separate check.
- USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
- Tracked solar input is 6,400 W before panel, weather, angle, and controller losses.
Watch out for
- Surge output is unknown, so do not assume compressor, pump, or power-tool startup will work.
- Still unknown in the source-backed record: surge output.
- Tracked weight is in a heavier class; plan where it will live before treating it as a grab-and-go station.
- Confidence is not marked verified; keep the linked source context visible before making a purchase or emergency plan.
Related Pecron Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
Sources
- Pecron F5000LFP product specifications (official; checked 2026-08-07)
