Source-linked model

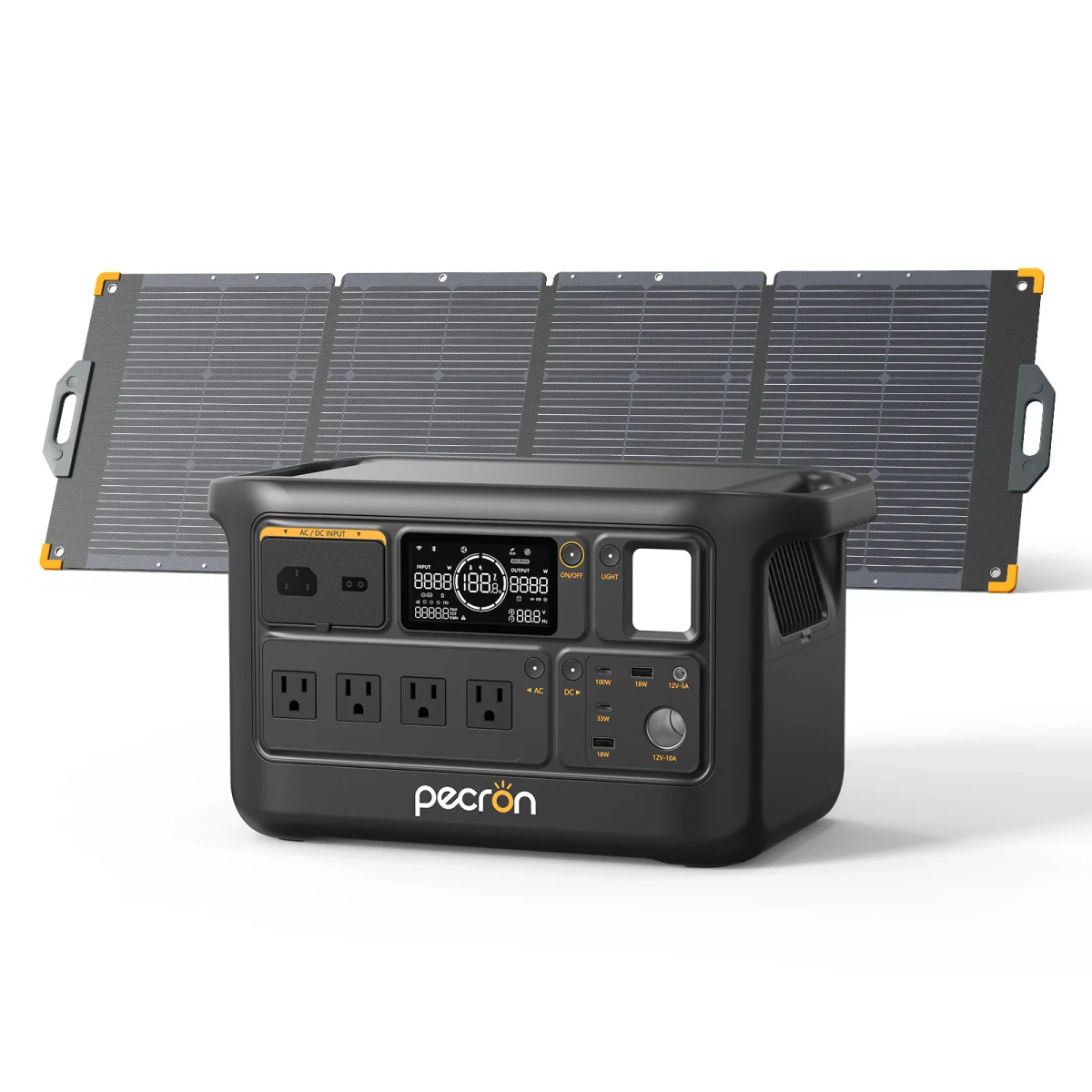

Pecron F1000LFP Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.
Capacity960 Wh
AC output1,500 W
Surge3,000 W
ChemistryLiFePO4
ConfidenceVerified
Source regionglobal/general
Checked2026-08-07
Swipe table sideways
| Battery capacity | 960 Wh |
|---|---|
| Battery chemistry | LiFePO4 |
| AC output | 1,500 W |
| Surge output | 3,000 W |
| DC output | 120 W |
| USB-C output | 100 W |
| Solar input | 600 W |
| Weight | 10.85 kg |
| Confidence | Verified |
| Lifecycle status | Unknown |
| Source region | global/general |
| Last verified | 2026-08-07 |
USB-C stores the higher of the two published ports (100W); the official table rates the second USB-C port at 33W. DC output uses the listed 12V/10A path.
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | 4h 27m | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | 18h 22m | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | 1d 0h | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | 2d 15h | Estimated | Use calculator |
| LED TV | 100 W at 100% | 7h 21m | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with Pecron F1000LFP prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 960 WhContinuous output rating (W): 1500 WSurge output rating (W): 3000 W
Estimated runtime12h 14m7h 40m – 15h 12mEstimated runtime: 12h 14m, 7h 40m – 15h 12m
Output path
Estimated runtime
12h 14mEstimated runtime: 12h 14mThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Conservative7h 40m
Estimated12h 14m
Optimistic15h 12m
Conservative assumes harder conditions; optimistic assumes favorable conditions.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
- Usable energy
- 734 Wh
- Average load
- 60 W
- Fixed station overhead
- Unknown (not included)
- Running watts
- 60 W
- Max surge
- n/a
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 960 Wh
- Battery capacity (Wh): 960 Wh
- Usable energy
- 734 Wh
- 960 Wh x 85% x 90% x 100% x 100%
- Average load
- 60 W
- 60 W running, 60 W average after duty cycle and quantity
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 12h 14m
- 734 Wh / 60 W = 12h 14m
- 960 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 v2
WattRunTime.com
WattRunTime estimate
Estimated runtime
12h 14mThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.Usable energy734 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative7h 40m
Estimated12h 14m
Optimistic15h 12m
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Rated battery960 WhBattery capacity (Wh): 960 Wh
Usable energy734 Wh960 Wh x 85% x 90% x 100% x 100%
Average load60 W60 W running, 60 W average after duty cycle and quantity
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime12h 14m734 Wh / 60 W = 12h 14m
Assumptions
- 960 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Share URL
Good fit when
- Capacity is best suited to lighter essentials such as routers, laptops, CPAP planning, lights, and smaller camping loads.
- Tracked AC output is 1,500 W, so high-draw appliances and tools need careful filtering.
- USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
- Tracked solar input is 600 W before panel, weather, angle, and controller losses.
Watch out for
- Surge output is tracked, but device startup behavior should still be checked against the actual load.
Related Pecron Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
Sources
- Pecron F1000LFP product specifications (official; checked 2026-08-07)
