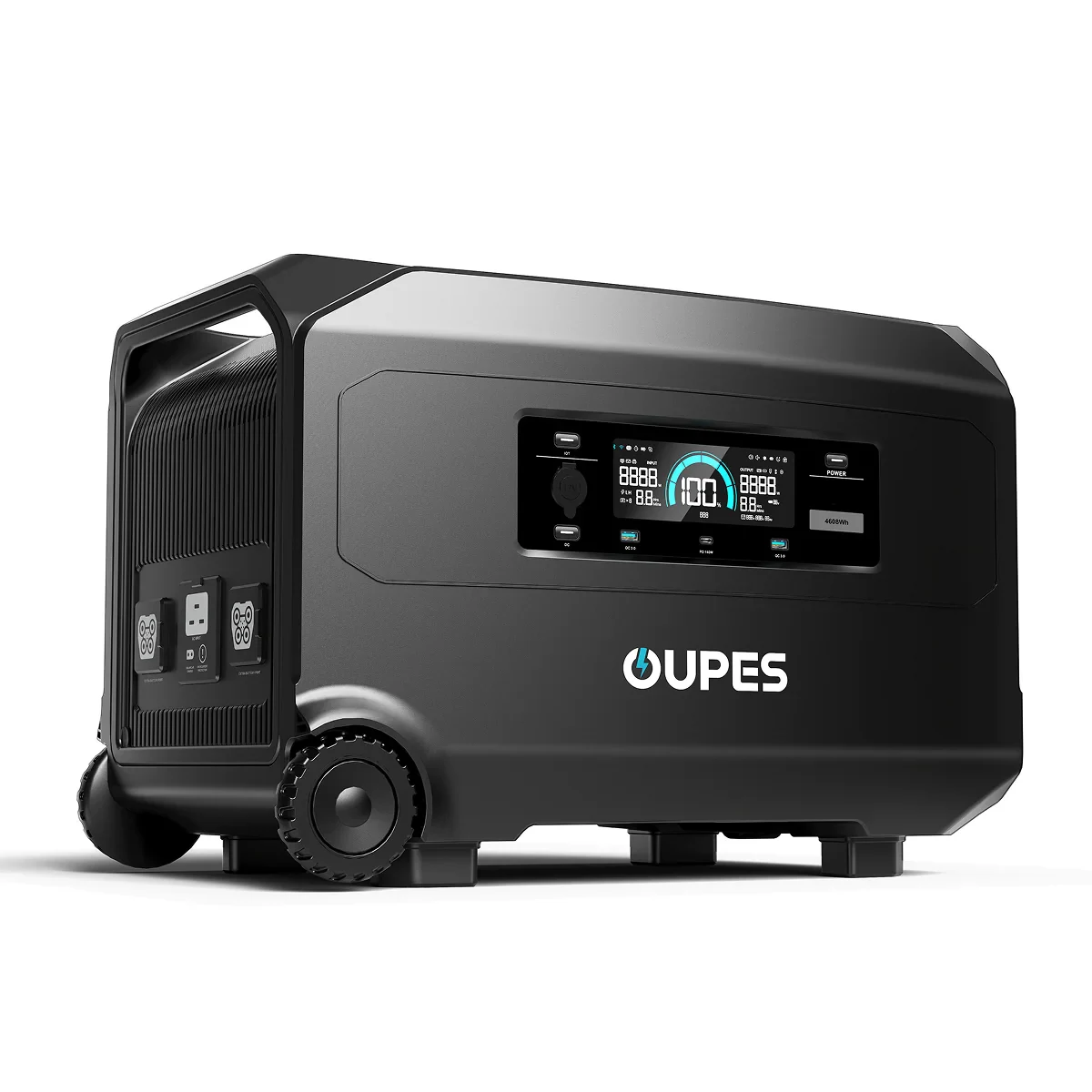

OUPES Guardian 6000 V2 Runtime Calculator
Quick answer: the OUPES Guardian 6000 V2 stores 4,608 Wh and delivers up to 6,000 W of continuous AC power. Under this site's planning assumptions (85% inverter efficiency, 10% reserve), a steady 100 W AC load runs for roughly 35.3 hours. Last source check: 2026-08-21. This is an estimate, not a guarantee.
Battery capacity4,608 Wh
AC output6,000 W
Surge output9,000 W
Battery chemistryLiFePO4
ConfidenceVerified
Source regionGlobal/general sources
checked2026-08-21
Swipe table sideways
| Battery capacity | 4,608 Wh |
|---|---|
| Battery chemistry | LiFePO4 |
| AC output | 6,000 W |
| Surge output | 9,000 W |
| DC output | 120 W |
| USB-C output | 140 W |
| Solar input | 3,600 W |
| Weight | 50.75 kg |
| Confidence | Verified |
| Lifecycle status | Unknown |
| Source region | Global/general sources |
| Last verified | 2026-08-21 |
Catalog notes (original English)
AC output stores the current page's 6,000W rated value; 7,200W Boost Mode remains distinct from the separately published 9,000W Peak/Surge value. Solar input stores the explicit 3,600W system total, not the arithmetic 4,200W sum of two individually rated 2,100W inputs. DC output stores the 12V/10A cigarette-lighter outlet.
Runtime estimate
Formula starting points use each scenario’s default watts, duty cycle and output path, with 10% reserve or 15% for CPAP. Linked detail pages use the same inputs. Hours apply only if the device can run and start; they are not measured runtimes.
Swipe table sideways
| Device scenario | Planning default | Estimated runtime | Device scenario: Confidence | Models |
|---|---|---|---|---|
| Full-size refrigerator | 500 W · 33% · AC inverter · Reserve: 10% | 21h 22m Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
| CPAP without heated humidifier | 40 W · 100% · AC inverter · Reserve: 15% | 3d 11h Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
| Starlink Mini | 32 W · 100% · USB-C PD · Reserve: 10% | 4d 23h Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
| Wi-Fi router | 12 W · 100% · AC inverter · Reserve: 10% | 12d 16h Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
| LED TV | 100 W · 100% · AC inverter · Reserve: 10% | 1d 11h Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
Runtime calculator
Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 4608 WhContinuous output rating (W): 6000 WSurge output rating (W): 9000 W
Estimated runtime2d 10h1d 12h – 3d 0hEstimated runtime: 2d 10h, 1d 12h – 3d 0h
Output path
Estimated runtime
Within the tracked power limits; compatibility still needs checking
This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior. Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
2d 10hEstimated runtime: 2d 10hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Conservative1d 12h
Estimated2d 10h
Optimistic3d 0h
These are calculated sensitivity cases, not a statistical confidence interval. Conservative uses lower efficiency and battery health, more reserve/temperature loss and higher load; optimistic changes these assumptions in the opposite direction.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior. Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
- Within the tracked power limits; compatibility still needs checking
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 4608 Wh
- Usable energy
- 3525 Wh
- 4608 Wh x 85% x 90% x 100% x 100%
- Running watts
- 60 W
- Average load
- 60 W
- Max surge
- n/a
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 2d 10h
- 3525 Wh / 60 W = 2d 10h
- Output path
- AC inverter
- Efficiency (%)
- 85
- Reserve kept unused (%)
- 10
- Battery health (%)
- 100
- Cold weather loss (%)
- 0
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 Plus
WattRunTime.com
WattRunTime estimate
Estimated runtime
2d 10hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.Usable energy3525 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative1d 12h
Estimated2d 10h
Optimistic3d 0h
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Usable energy3525 Wh4608 Wh x 85% x 90% x 100% x 100%
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime2d 10h3525 Wh / 60 W = 2d 10h
Assumptions
- 4608 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior. Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
- Within the tracked power limits; compatibility still needs checking
Share URL
Planning notes
- Capacity class: 4,608 Wh. Size the battery for your measured average load and required hours, including reserve.
- Tracked output: 6,000 W. Compare both running demand and startup demand before using any runtime estimate.
- Solar input limit: 3,600 W. Actual refill depends on panel voltage/current compatibility, sunlight, angle and charging losses.
Known data gaps
- Unverified or missing specifications remain visible. The confidence label describes the station record, not a tested runtime or approval for emergency use.
- Weight: 50.75 kg. Check the complete carrying setup, cables and battery extensions before choosing this model for travel.
- unknown: —
Models: OUPES
Compare nearby capacity records from the same brand, then check output, weight and missing fields. A larger battery does not establish device compatibility.
OUPES Guardian 6000
4,608 Wh · AC output: 6,000 W · Confidence: Estimated
OUPES Mega 5
5,040 Wh · AC output: 4,000 W · Confidence: Verified
OUPES Titan 5
5,040 Wh · AC output: 4,000 W · Confidence: Estimated
Sources
- OUPES Guardian 6000 V2 product specifications (Official; checked 2026-08-21)
- OUPES Guardian 6000 V2 user manual (Official; checked 2026-08-21)
