Source-linked model

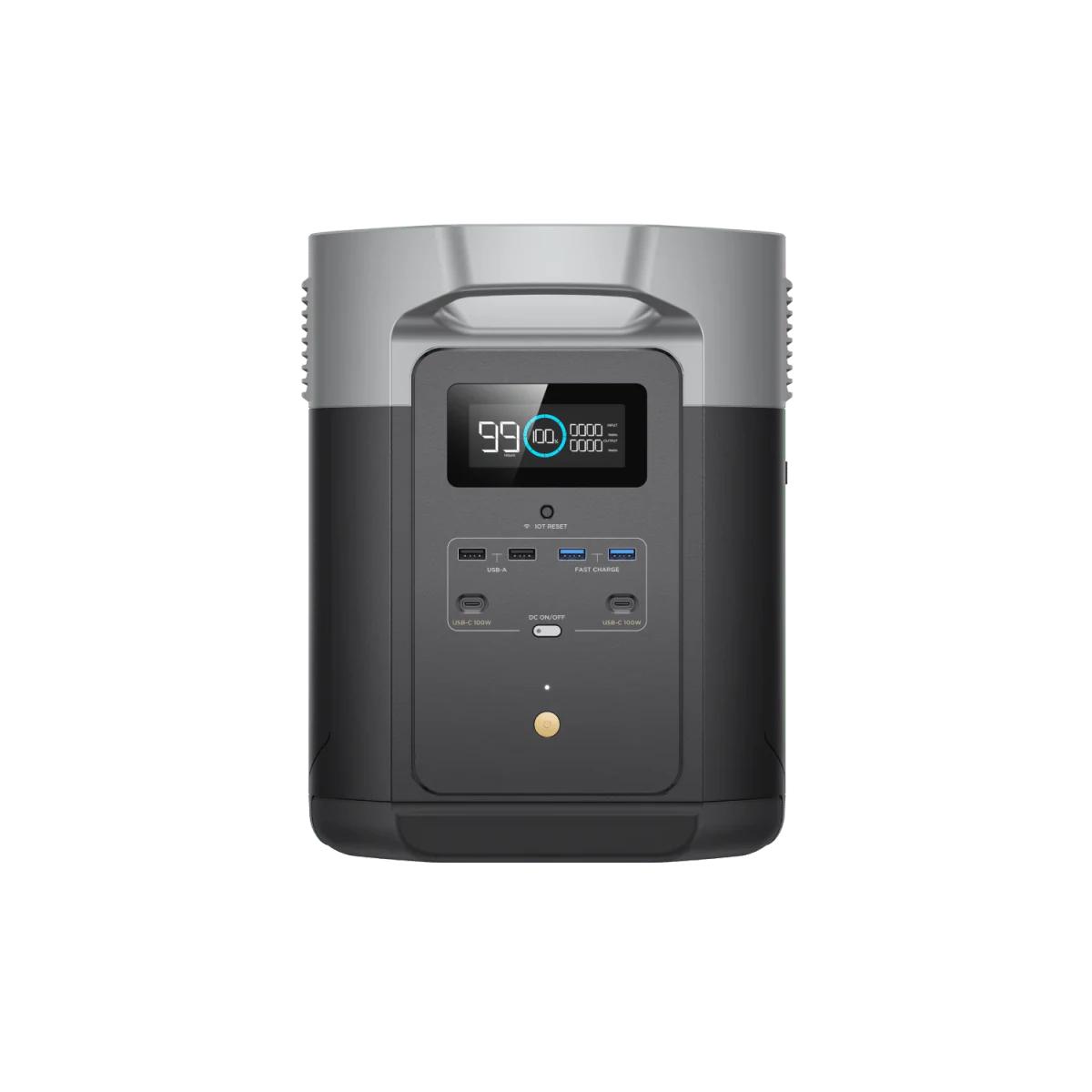

EcoFlow DELTA Max 1600 Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.
Capacity1612 Wh
AC output2,000 W
Surge5,000 W
ChemistryNCM
ConfidenceVerified
Source regionglobal/general
Checked2026-07-10
Swipe table sideways
| Battery capacity | 1612 Wh |
|---|---|
| Battery chemistry | NCM |
| AC output | 2,000 W |
| Surge output | 5,000 W |
| DC output | 126 W |
| USB-C output | 100 W |
| Solar input | 800 W |
| Weight | 22 kg |
| Confidence | Verified |
| Lifecycle status | Unknown |
| Source region | global/general |
| Last verified | 2026-07-10 |
Manual source is used because the US product page is retired; record tracks the 1600Wh variant.
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | 7h 28m | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | 1d 6h | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | 1d 16h | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | 4d 10h | Estimated | Use calculator |
| LED TV | 100 W at 100% | 12h 20m | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with EcoFlow DELTA Max 1600 prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 1612 WhContinuous output rating (W): 2000 WSurge output rating (W): 5000 W
Estimated runtime20h 33m12h 52m – 1d 1hEstimated runtime: 20h 33m, 12h 52m – 1d 1h
Output path
Estimated runtime
20h 33mEstimated runtime: 20h 33mThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Conservative12h 52m
Estimated20h 33m
Optimistic1d 1h
Conservative assumes harder conditions; optimistic assumes favorable conditions.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
- Usable energy
- 1233 Wh
- Average load
- 60 W
- Fixed station overhead
- Unknown (not included)
- Running watts
- 60 W
- Max surge
- n/a
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 1612 Wh
- Battery capacity (Wh): 1612 Wh
- Usable energy
- 1233 Wh
- 1612 Wh x 85% x 90% x 100% x 100%
- Average load
- 60 W
- 60 W running, 60 W average after duty cycle and quantity
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 20h 33m
- 1233 Wh / 60 W = 20h 33m
- 1612 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 v2
WattRunTime.com
WattRunTime estimate
Estimated runtime
20h 33mThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.Usable energy1233 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative12h 52m
Estimated20h 33m
Optimistic1d 1h
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Rated battery1612 WhBattery capacity (Wh): 1612 Wh
Usable energy1233 Wh1612 Wh x 85% x 90% x 100% x 100%
Average load60 W60 W running, 60 W average after duty cycle and quantity
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime20h 33m1233 Wh / 60 W = 20h 33m
Assumptions
- 1612 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Share URL
Good fit when
- Capacity is in a mid-size planning class that can cover many overnight or essential-load scenarios when reserve and efficiency are included.
- Tracked AC output is high enough for many household plug-in loads, but surge still needs a separate check.
- USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
- Tracked solar input is 800 W before panel, weather, angle, and controller losses.
Watch out for
- Surge output is tracked, but device startup behavior should still be checked against the actual load.
Related EcoFlow Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
DELTA 3 1500
1,536 Wh, 1,800 W AC output, confidence: Verified.
DELTA Max 2000
2,016 Wh, 2,000 W AC output, confidence: Verified.
DELTA 2 Max
2,048 Wh, 2,400 W AC output, confidence: Verified.
Sources
- EcoFlow DELTA Max manual page (official; checked 2026-07-10)
