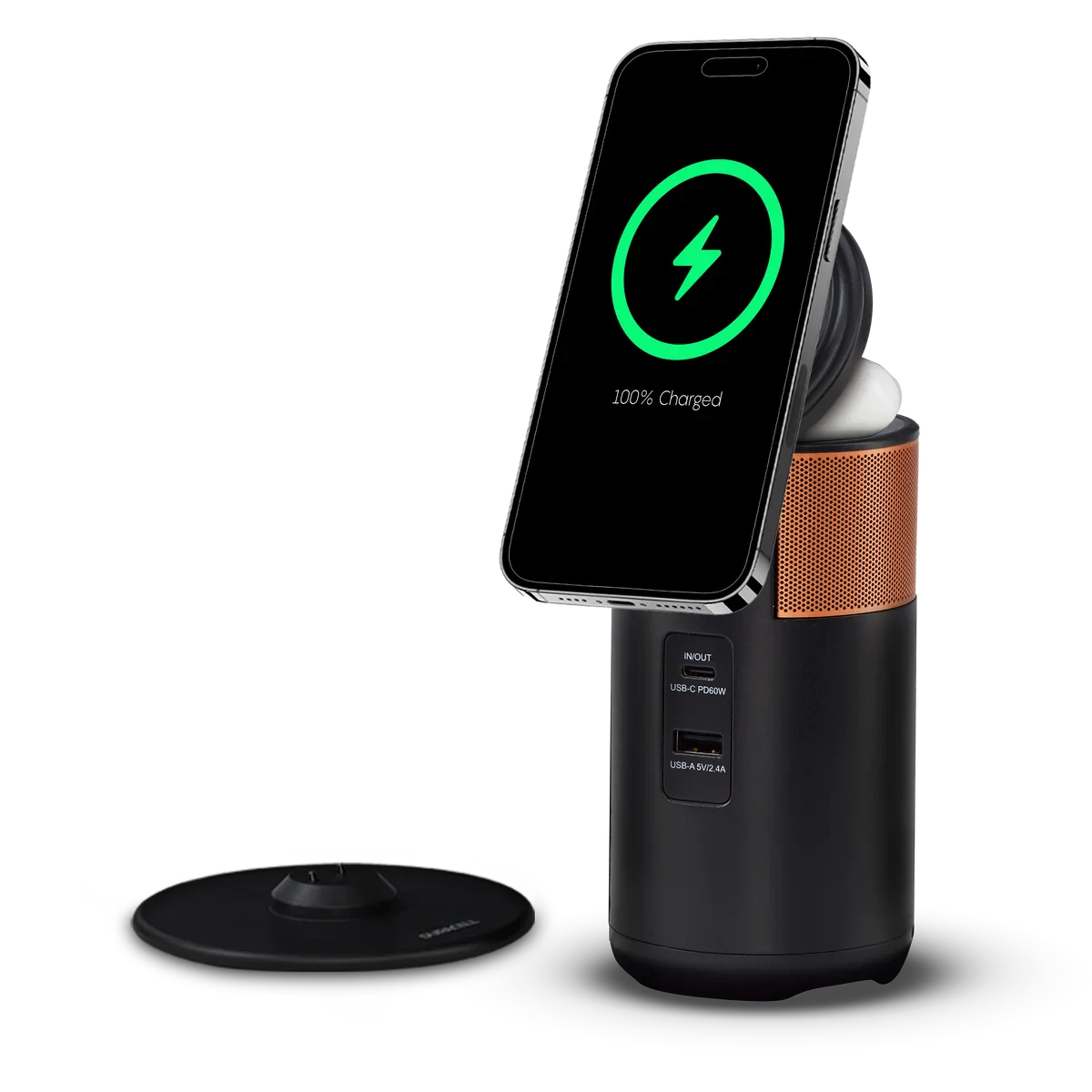

Duracell M100 Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.
Capacity55 Wh
AC outputunknown
Surgeunknown
ChemistryLi-ion NMC
ConfidenceEstimated
Source regionglobal/general
Checked2026-08-21
Swipe table sideways
| Battery capacity | 55 Wh |
|---|---|
| Battery chemistry | Li-ion NMC |
| AC output | unknown |
| Surge output | unknown |
| DC output | not available |
| USB-C output | 60 W |
| Solar input | 36 W |
| Weight | 0.66 kg |
| Confidence | Estimated |
| Lifecycle status | Unknown |
| Source region | global/general |
| Last verified | 2026-08-21 |
This charging hub has no AC inverter or conventional 12V output, so surge is not applicable and DC is zero. USB-C stores the highest single wired-output ceiling rather than the 92W combined USB and wireless total. The 36W solar value is the official M-Solar accessory's maximum PD output, not a dedicated solar-input port. Weight uses the manual's 660g nominal value; the current page rounds it to 1.5lb.
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | AC output unknown | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | AC output unknown | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | AC output unknown | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | AC output unknown | Estimated | Use calculator |
| LED TV | 100 W at 100% | AC output unknown | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with Duracell M100 prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 55 WhContinuous output rating (W): n/aSurge output rating (W): n/a
Estimated runtime42m26m – 52mEstimated runtime: 42m, 26m – 52m
Output path
Estimated runtime
42mEstimated runtime: 42mThis setup is tight. Reduce load, use DC where possible, or choose a larger station.
Conservative26m
Estimated42m
Optimistic52m
Conservative assumes harder conditions; optimistic assumes favorable conditions.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
- The selected station output rating is unknown, so running-load compatibility is not verified.
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 55 Wh
- Usable energy
- 42 Wh
- 55 Wh x 85% x 90% x 100% x 100%
- Running watts
- 60 W
- Average load
- 60 W
- Max surge
- n/a
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 42m
- 42 Wh / 60 W = 42m
- Output path
- AC inverter
- Efficiency (%)
- 85
- Reserve kept unused (%)
- 10
- Battery health (%)
- 100
- Cold weather loss (%)
- 0
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 v2
WattRunTime.com
WattRunTime estimate
Estimated runtime
42mThis setup is tight. Reduce load, use DC where possible, or choose a larger station.Usable energy42 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative26m
Estimated42m
Optimistic52m
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Usable energy42 Wh55 Wh x 85% x 90% x 100% x 100%
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime42m42 Wh / 60 W = 42m
Assumptions
- 55 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
- The selected station output rating is unknown, so running-load compatibility is not verified.
Share URL
Good fit when
- Capacity is a compact class; use it for small electronics and short essentials rather than high-wattage appliances.
- AC output is unknown in the current source record, so do not assume it can run AC appliances.
- USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
- Tracked solar input is 36 W before panel, weather, angle, and controller losses.
Watch out for
- Surge output is unknown, so do not assume compressor, pump, or power-tool startup will work.
- Still unknown in the source-backed record: ac output, surge output.
- Confidence is not marked verified; keep the linked source context visible before making a purchase or emergency plan.
Related Duracell Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
Sources
- Duracell M100 user manual (official; checked 2026-08-21)
- Duracell M-Solar specifications (official; checked 2026-08-21)
- Duracell M100 product page (official; checked 2026-08-21)
