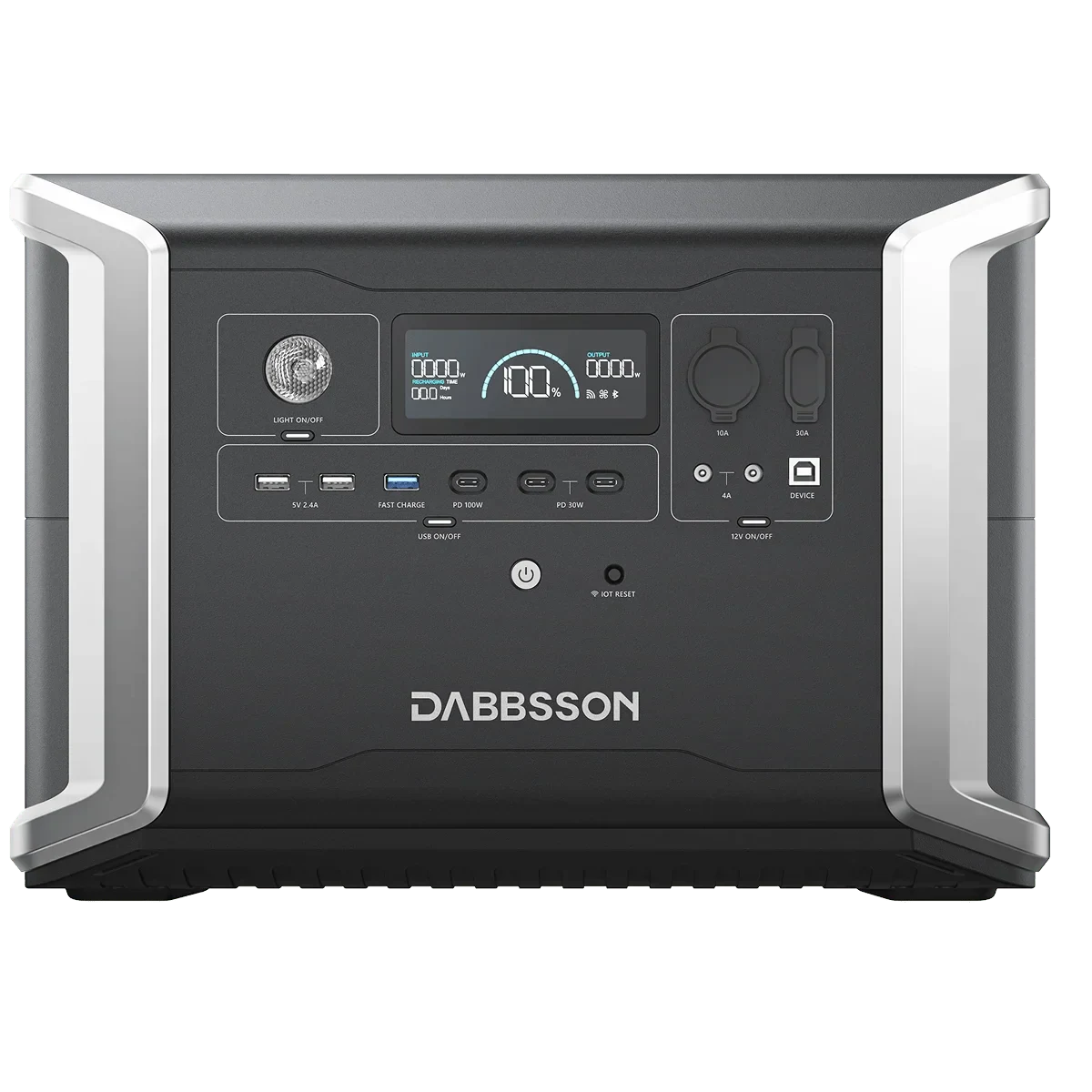

Dabbsson DBS2300 Plus Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.
Capacity2330 Wh
AC output2,200 W
Surge4,400 W
ChemistryEV Semi-solid State LiFePO4
ConfidenceVerified
Source regionglobal/general
Checked2026-08-21
Swipe table sideways
| Battery capacity | 2330 Wh |
|---|---|
| Battery chemistry | EV Semi-solid State LiFePO4 |
| AC output | 2,200 W |
| Surge output | 4,400 W |
| DC output | 378 W |
| USB-C output | 100 W |
| Solar input | 800 W |
| Weight | 26.38 kg |
| Confidence | Verified |
| Lifecycle status | Unknown |
| Source region | global/general |
| Last verified | 2026-08-21 |
The 378 W DC ceiling is the manual's single 12.6V/30A Anderson outlet. The 3000 W Power-Boost mode is not surge, and the 4200 W parallel rating requires two stations plus a connector box; neither replaces the single station's explicit 2200 W continuous / 4400 W surge ratings.
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | 10h 48m | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | 1d 20h | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | 2d 10h | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | 6d 9h | Estimated | Use calculator |
| LED TV | 100 W at 100% | 17h 49m | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with Dabbsson DBS2300 Plus prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 2330 WhContinuous output rating (W): 2200 WSurge output rating (W): 4400 W
Estimated runtime1d 5h18h 36m – 1d 12hEstimated runtime: 1d 5h, 18h 36m – 1d 12h
Output path
Estimated runtime
1d 5hEstimated runtime: 1d 5hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Conservative18h 36m
Estimated1d 5h
Optimistic1d 12h
Conservative assumes harder conditions; optimistic assumes favorable conditions.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 2330 Wh
- Usable energy
- 1782 Wh
- 2330 Wh x 85% x 90% x 100% x 100%
- Running watts
- 60 W
- Average load
- 60 W
- Max surge
- n/a
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 1d 5h
- 1782 Wh / 60 W = 1d 5h
- Output path
- AC inverter
- Efficiency (%)
- 85
- Reserve kept unused (%)
- 10
- Battery health (%)
- 100
- Cold weather loss (%)
- 0
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 v2
WattRunTime.com
WattRunTime estimate
Estimated runtime
1d 5hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.Usable energy1782 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative18h 36m
Estimated1d 5h
Optimistic1d 12h
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Usable energy1782 Wh2330 Wh x 85% x 90% x 100% x 100%
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime1d 5h1782 Wh / 60 W = 1d 5h
Assumptions
- 2330 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Share URL
Good fit when
- Capacity is in a larger outage/RV class, so the useful question is usually output limits, recharge speed, and weight rather than watt-hours alone.
- Tracked AC output is high enough for many household plug-in loads, but surge still needs a separate check.
- USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
- Tracked solar input is 800 W before panel, weather, angle, and controller losses.
Watch out for
- Surge output is tracked, but device startup behavior should still be checked against the actual load.
- Tracked weight is in a heavier class; plan where it will live before treating it as a grab-and-go station.
Related Dabbsson Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
DBS2300
2,330 Wh, 2,200 W AC output, confidence: Verified.
DBS2100 Pro
2,150 Wh, 2,400 W AC output, confidence: Verified.
2000L
2,048 Wh, 2,200 W AC output, confidence: Verified.
Sources
- Dabbsson DBS2300 Plus US product specifications (official; checked 2026-08-21)
- Dabbsson DBS2300 Plus US user manual (official; checked 2026-08-21)
