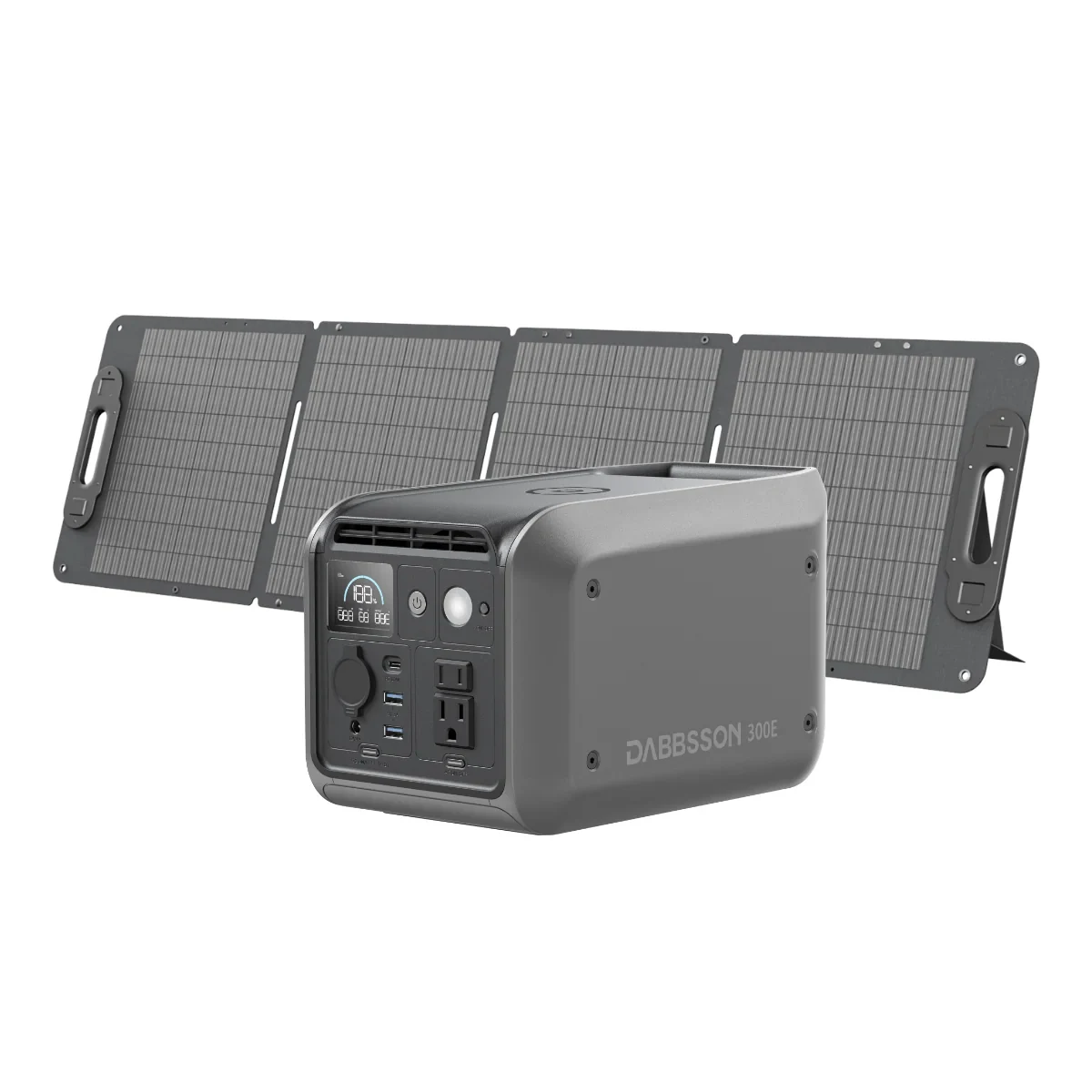

Dabbsson 300E Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.
Capacity298 Wh
AC output300 W
Surge600 W
ChemistryLiFePO4
ConfidenceVerified
Source regionglobal/general
Checked2026-08-21
Swipe table sideways
| Battery capacity | 298 Wh |
|---|---|
| Battery chemistry | LiFePO4 |
| AC output | 300 W |
| Surge output | 600 W |
| DC output | 120 W |
| USB-C output | 60 W |
| Solar input | 120 W |
| Weight | 4.3 kg |
| Confidence | Verified |
| Lifecycle status | Unknown |
| Source region | global/general |
| Last verified | 2026-08-21 |
The US product table supplies the separately labeled 600 W surge rating. The US manual supplies the exact 4.3 kg weight and says the car outlet shares its 120 W ceiling with the DC5521 port, so the paths are not summed. Regional 336 Wh variants are different SKUs and are not modeled here.
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | above tracked AC output | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | 5h 42m | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | 7h 33m | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | 19h 40m | Estimated | Use calculator |
| LED TV | 100 W at 100% | 2h 17m | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with Dabbsson 300E prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 298 WhContinuous output rating (W): 300 WSurge output rating (W): 600 W
Estimated runtime3h 48m2h 23m – 4h 43mEstimated runtime: 3h 48m, 2h 23m – 4h 43m
Output path
Estimated runtime
3h 48mEstimated runtime: 3h 48mThis setup is tight. Reduce load, use DC where possible, or choose a larger station.
Conservative2h 23m
Estimated3h 48m
Optimistic4h 43m
Conservative assumes harder conditions; optimistic assumes favorable conditions.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 298 Wh
- Usable energy
- 228 Wh
- 298 Wh x 85% x 90% x 100% x 100%
- Running watts
- 60 W
- Average load
- 60 W
- Max surge
- n/a
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 3h 48m
- 228 Wh / 60 W = 3h 48m
- Output path
- AC inverter
- Efficiency (%)
- 85
- Reserve kept unused (%)
- 10
- Battery health (%)
- 100
- Cold weather loss (%)
- 0
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 v2
WattRunTime.com
WattRunTime estimate
Estimated runtime
3h 48mThis setup is tight. Reduce load, use DC where possible, or choose a larger station.Usable energy228 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative2h 23m
Estimated3h 48m
Optimistic4h 43m
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Usable energy228 Wh298 Wh x 85% x 90% x 100% x 100%
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime3h 48m228 Wh / 60 W = 3h 48m
Assumptions
- 298 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Share URL
Good fit when
- Capacity is a compact class; use it for small electronics and short essentials rather than high-wattage appliances.
- Tracked AC output is 300 W, so high-draw appliances and tools need careful filtering.
- USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
- Tracked solar input is 120 W before panel, weather, angle, and controller losses.
Watch out for
- Surge output is tracked, but device startup behavior should still be checked against the actual load.
Related Dabbsson Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
600L
768 Wh, 600 W AC output, confidence: Verified.
1000L
1,008 Wh, 1,200 W AC output, confidence: Verified.
DBS1000 Pro
1,024 Wh, 2,000 W AC output, confidence: Verified.
Sources
- Dabbsson 300E US product specifications (official; checked 2026-08-21)
- Dabbsson 300E US user manual (official; checked 2026-08-21)
