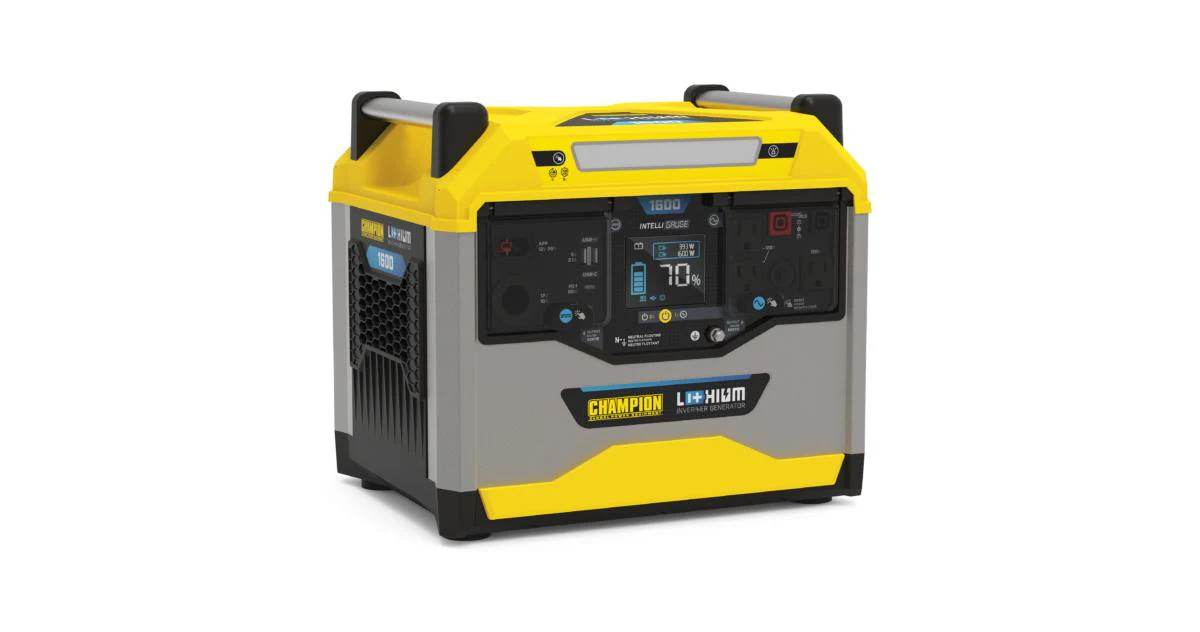

Champion Power Equipment 1638Wh Power Station Runtime Calculator
Quick answer: the Champion Power Equipment 1638Wh Power Station stores 1,638 Wh and delivers up to 1,600 W of continuous AC power. Under this site's planning assumptions (85% inverter efficiency, 10% reserve), a steady 100 W AC load runs for roughly 12.5 hours. Last source check: 2026-08-27. This is an estimate, not a guarantee.
Battery capacity1,638 Wh
AC output1,600 W
Surge output3,200 W
Battery chemistryLithium-ion NMC
ConfidenceEstimated
Source regionGlobal/general sources
checked2026-08-27
Swipe table sideways
| Battery capacity | 1,638 Wh |
|---|---|
| Battery chemistry | Lithium-ion NMC |
| AC output | 1,600 W |
| Surge output | 3,200 W |
| DC output | 477 W |
| USB-C output | unknown |
| Solar input | 440 W |
| Weight | 19.01 kg |
| Confidence | Estimated |
| Lifecycle status | Unknown |
| Source region | Global/general sources |
| Last verified | 2026-08-27 |
Catalog notes (original English)
This model accepts Champion's 1638Wh expansion battery (SKU 201107), so usable capacity can be doubled. It also steps the cycle rating up to 1000 from the 800 of the smaller units. Champion rates these units as running watts (continuous) and starting watts (surge); this record uses the running-watts figure as AC output and starting watts as surge. Champion lists a USB-C Power Delivery port but publishes no wattage for it, so USB-C output stays unknown. All models use lithium-ion NMC rather than LFP, so plan a shorter service life than an equivalent LiFePO4 station.
Runtime estimate
Formula starting points use each scenario’s default watts, duty cycle and output path, with 10% reserve or 15% for CPAP. Linked detail pages use the same inputs. Hours apply only if the device can run and start; they are not measured runtimes.
Swipe table sideways
| Device scenario | Planning default | Estimated runtime | Device scenario: Confidence | Models |
|---|---|---|---|---|
| Full-size refrigerator | 500 W · 33% · AC inverter · Reserve: 10% | 7h 36m Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
| CPAP without heated humidifier | 40 W · 100% · AC inverter · Reserve: 15% | 1d 5h Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
| Starlink Mini | 32 W · 100% · USB-C PD · Reserve: 10% | 1d 18h Output or startup compatibility is not established | Estimated | Calculator |
| Wi-Fi router | 12 W · 100% · AC inverter · Reserve: 10% | 4d 12h Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
| LED TV | 100 W · 100% · AC inverter · Reserve: 10% | 12h 32m Within the tracked power limits; compatibility still needs checking | Estimated | Calculator |
Runtime calculator
Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 1638 WhContinuous output rating (W): 1600 WSurge output rating (W): 3200 W
Estimated runtime20h 53m13h 4m – 1d 1hEstimated runtime: 20h 53m, 13h 4m – 1d 1h
Output path
Estimated runtime
Within the tracked power limits; compatibility still needs checking
This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior. Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
20h 53mEstimated runtime: 20h 53mThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Conservative13h 4m
Estimated20h 53m
Optimistic1d 1h
These are calculated sensitivity cases, not a statistical confidence interval. Conservative uses lower efficiency and battery health, more reserve/temperature loss and higher load; optimistic changes these assumptions in the opposite direction.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior. Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
- Within the tracked power limits; compatibility still needs checking
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 1638 Wh
- Usable energy
- 1253 Wh
- 1638 Wh x 85% x 90% x 100% x 100%
- Running watts
- 60 W
- Average load
- 60 W
- Max surge
- n/a
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 20h 53m
- 1253 Wh / 60 W = 20h 53m
- Output path
- AC inverter
- Efficiency (%)
- 85
- Reserve kept unused (%)
- 10
- Battery health (%)
- 100
- Cold weather loss (%)
- 0
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 Plus
WattRunTime.com
WattRunTime estimate
Estimated runtime
20h 53mThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.Usable energy1253 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative13h 4m
Estimated20h 53m
Optimistic1d 1h
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Usable energy1253 Wh1638 Wh x 85% x 90% x 100% x 100%
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime20h 53m1253 Wh / 60 W = 20h 53m
Assumptions
- 1638 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior. Runtime is conditional on successful startup, compatible voltage/connectors and sufficient output. Verify the actual device setup before relying on these hours.
- Within the tracked power limits; compatibility still needs checking
Share URL
Planning notes
- Capacity class: 1,638 Wh. Size the battery for your measured average load and required hours, including reserve.
- Tracked output: 1,600 W. Compare both running demand and startup demand before using any runtime estimate.
- Solar input limit: 440 W. Actual refill depends on panel voltage/current compatibility, sunlight, angle and charging losses.
Known data gaps
- Unverified or missing specifications remain visible. The confidence label describes the station record, not a tested runtime or approval for emergency use.
- Weight: 19.01 kg. Check the complete carrying setup, cables and battery extensions before choosing this model for travel.
- unknown: USB-C output
Models: Champion Power Equipment
Compare nearby capacity records from the same brand, then check output, weight and missing fields. A larger battery does not establish device compatibility.
Champion Power Equipment 998Wh Power Station
998 Wh · AC output: 1,000 W · Confidence: Estimated
Champion Power Equipment 579Wh Power Station
579 Wh · AC output: 600 W · Confidence: Estimated
Champion Power Equipment 285Wh Power Station
285 Wh · AC output: 300 W · Confidence: Estimated
Sources
- Champion official 1638Wh power station specification table (Official; checked 2026-08-27)
