Source-linked model

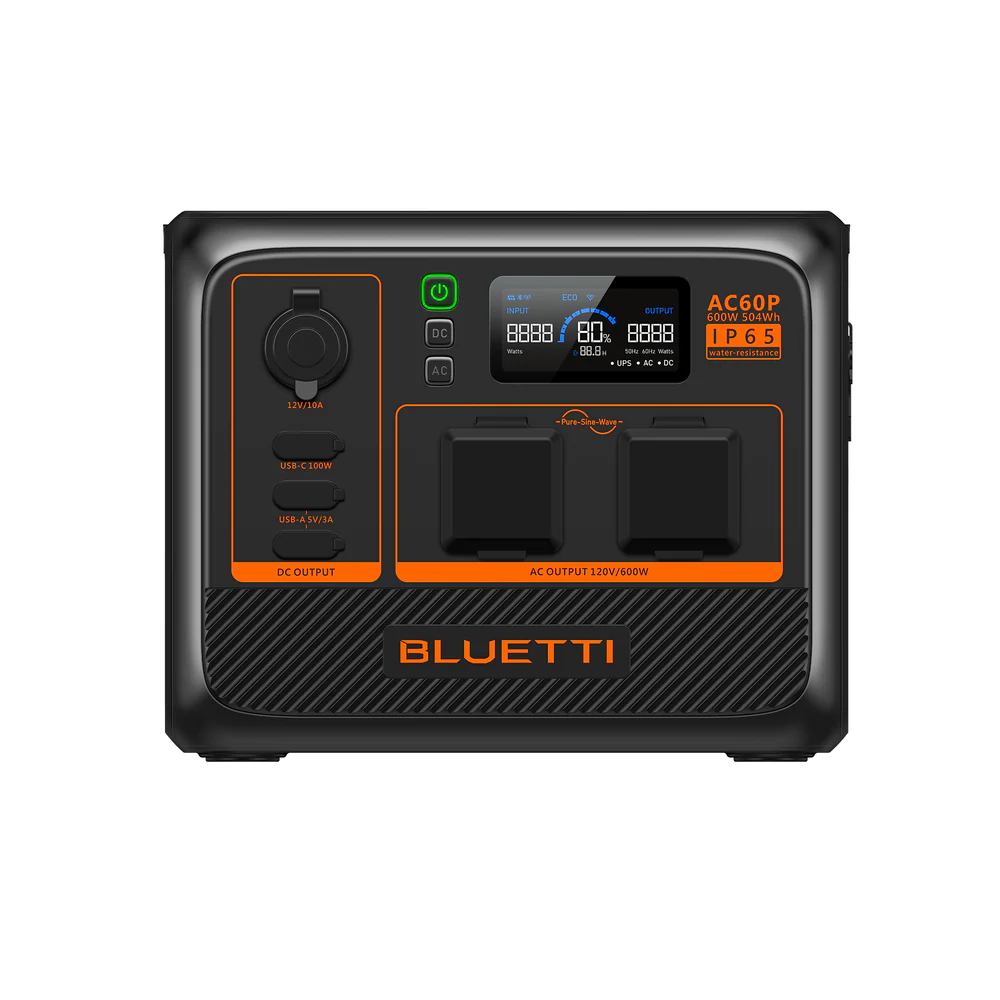

BLUETTI AC60P Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.
Capacity504 Wh
AC output600 W
Surge1,200 W
ChemistryLiFePO4
ConfidenceVerified
Source regionglobal/general
Checked2026-06-24
Swipe table sideways
| Battery capacity | 504 Wh |
|---|---|
| Battery chemistry | LiFePO4 |
| AC output | 600 W |
| Surge output | 1,200 W |
| DC output | 120 W |
| USB-C output | 100 W |
| Solar input | 200 W |
| Weight | 9.1 kg |
| Confidence | Verified |
| Lifecycle status | Unknown |
| Source region | global/general |
| Last verified | 2026-06-24 |
Shared AC60/AC60P page lists both 403Wh and 504Wh variants; this record tracks AC60P as the 504Wh variant.
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | 2h 20m | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | 9h 38m | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | 12h 45m | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | 1d 9h | Estimated | Use calculator |
| LED TV | 100 W at 100% | 3h 51m | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with BLUETTI AC60P prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 504 WhContinuous output rating (W): 600 WSurge output rating (W): 1200 W
Estimated runtime6h 26m4h 1m – 7h 59mEstimated runtime: 6h 26m, 4h 1m – 7h 59m
Output path
Estimated runtime
6h 26mEstimated runtime: 6h 26mThis setup may cover a partial outage or single overnight session. Add capacity for more margin.
Conservative4h 1m
Estimated6h 26m
Optimistic7h 59m
Conservative assumes harder conditions; optimistic assumes favorable conditions.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
- Usable energy
- 386 Wh
- Average load
- 60 W
- Fixed station overhead
- Unknown (not included)
- Running watts
- 60 W
- Max surge
- n/a
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 504 Wh
- Battery capacity (Wh): 504 Wh
- Usable energy
- 386 Wh
- 504 Wh x 85% x 90% x 100% x 100%
- Average load
- 60 W
- 60 W running, 60 W average after duty cycle and quantity
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 6h 26m
- 386 Wh / 60 W = 6h 26m
- 504 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 v2
WattRunTime.com
WattRunTime estimate
Estimated runtime
6h 26mThis setup may cover a partial outage or single overnight session. Add capacity for more margin.Usable energy386 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative4h 1m
Estimated6h 26m
Optimistic7h 59m
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Rated battery504 WhBattery capacity (Wh): 504 Wh
Usable energy386 Wh504 Wh x 85% x 90% x 100% x 100%
Average load60 W60 W running, 60 W average after duty cycle and quantity
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime6h 26m386 Wh / 60 W = 6h 26m
Assumptions
- 504 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Share URL
Good fit when
- Capacity is best suited to lighter essentials such as routers, laptops, CPAP planning, lights, and smaller camping loads.
- Tracked AC output is 600 W, so high-draw appliances and tools need careful filtering.
- USB-C output is tracked at laptop-class power, useful for direct DC charging when the device supports it.
- Tracked solar input is 200 W before panel, weather, angle, and controller losses.
Watch out for
- Surge output is tracked, but device startup behavior should still be checked against the actual load.
Related BLUETTI Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
Compare AC60P With Similar Stations
These source-aware comparisons use the same assumptions on both sides and keep unknown fields visible.
BLUETTI AC60P vs Anker SOLIX C800 Plus
Compare against Anker SOLIX C800 Plus by capacity, output, solar input, weight, confidence, and shared runtime examples.
Sources
- BLUETTI AC60 / AC60P product page (official; checked 2026-06-24)
