Arkpax Ark PRO 2400W Runtime Calculator
Use this source-linked record to estimate runtime from tracked capacity, output, charging, and weight fields. Unknown specs stay unknown until an official or manufacturer-grade source confirms them.

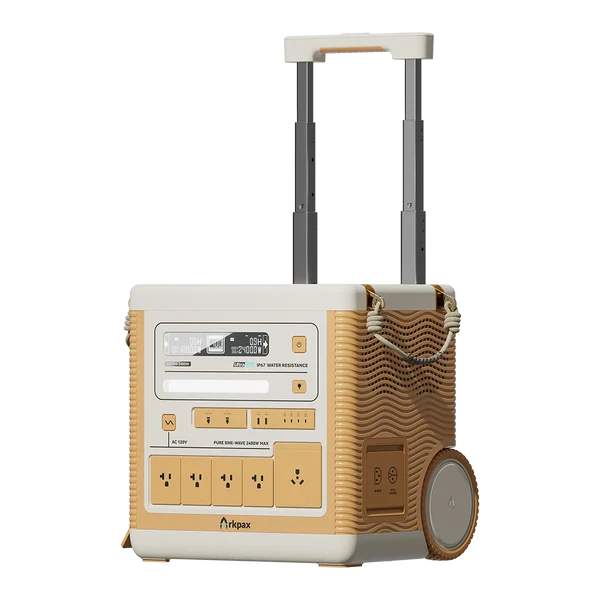

Quick answer: the Arkpax Ark PRO 2400W stores 2,300 Wh and delivers up to 2,400 W of continuous AC power. Under this site's planning assumptions (85% inverter efficiency, 10% reserve), a steady 100 W AC load runs for roughly 17.6 hours. Last source check: 2026-08-27. This is an estimate, not a guarantee.
Capacity2300 Wh
AC output2,400 W
Surge4,800 W
ChemistryLiFePO4
ConfidenceEstimated
Source regionglobal/general
Checked2026-08-27
Swipe table sideways
| Battery capacity | 2300 Wh |
|---|---|
| Battery chemistry | LiFePO4 |
| AC output | 2,400 W |
| Surge output | 4,800 W |
| DC output | unknown |
| USB-C output | unknown |
| Solar input | 1,200 W |
| Weight | unknown |
| Confidence | Estimated |
| Lifecycle status | Unknown |
| Source region | global/general |
| Last verified | 2026-08-27 |
Capacity stores the 2300Wh base unit rather than the expanded system. The page offers both a 120V/60Hz North American build and a 210-240V 50/60Hz European build; the stored AC rating is identical for both. USB-C, DC and weight stay unknown because the table publishes none.
Runtime Starting Points
These are formula estimates using the tracked capacity, a 10% reserve, and each scenario's default wattage and duty cycle. They are planning starters, not measured runtimes.
Swipe table sideways
| Scenario | Default load | Estimate | Scenario confidence | Station page |
|---|---|---|---|---|
| Full-size refrigerator | 500 W at 33% | 10h 40m | Estimated | Use calculator |
| CPAP without heated humidifier | 40 W at 100% | 1d 19h | Estimated | Use calculator |
| Starlink Mini | 32 W at 100% | 2d 10h | Estimated | Use calculator |
| Wi-Fi router | 12 W at 100% | 6d 7h | Estimated | Use calculator |
| LED TV | 100 W at 100% | 17h 36m | Estimated | Use calculator |
Calculator for this station
Adjust watts, duty cycle, reserve, output path, and startup surge with Arkpax Ark PRO 2400W prefilled from the source-linked specs above.
Loading calculatorPreparing calculator
This tool didn't load
Something blocked the calculator from starting. Check your connection or reload the page to try again.
Power station model
Battery capacity (Wh): 2300 WhContinuous output rating (W): 2400 WSurge output rating (W): 4800 W
Estimated runtime1d 5h18h 21m – 1d 12hEstimated runtime: 1d 5h, 18h 21m – 1d 12h
Output path
Estimated runtime
1d 5hEstimated runtime: 1d 5hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.
Conservative18h 21m
Estimated1d 5h
Optimistic1d 12h
Conservative assumes harder conditions; optimistic assumes favorable conditions.
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
- Rated battery
- 2300 Wh
- Usable energy
- 1760 Wh
- 2300 Wh x 85% x 90% x 100% x 100%
- Running watts
- 60 W
- Average load
- 60 W
- Max surge
- n/a
- Fixed station overhead
- Unknown (not included)
- 60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
- Estimated runtime
- 1d 5h
- 1760 Wh / 60 W = 1d 5h
- Output path
- AC inverter
- Efficiency (%)
- 85
- Reserve kept unused (%)
- 10
- Battery health (%)
- 100
- Cold weather loss (%)
- 0
This link contains the numeric values you entered, but not custom load names.
Source-Backed Next Steps
Smallest matching record (8h)Jackery Explorer 600 Plus
WattRunTime.com
WattRunTime estimate
Estimated runtime
1d 5hThis setup has comfortable headroom for overnight use, assuming the wattage estimate is realistic.Usable energy1760 Wh
Average load60 W
Fixed station overheadUnknown (not included)
Running watts60 W
Max surgen/a
Runtime range
Conservative18h 21m
Estimated1d 5h
Optimistic1d 12h
Show your work
Rated Wh is reduced by efficiency, reserve, battery health, and temperature before it is divided by average load.
Usable energy1760 Wh2300 Wh x 85% x 90% x 100% x 100%
Fixed station overheadUnknown (not included)60 W / 85% = 70.6 W battery draw; fixed overhead is unknown and excluded
Estimated runtime1d 5h1760 Wh / 60 W = 1d 5h
Assumptions
- 2300 Wh nominal battery capacity
- AC inverter output path
- 85% conversion efficiency
- 10% reserve kept unused
- 60 W average load from 1 load
- 100% battery health
- 0% temperature loss
- Fixed station overhead unknown; not included
Warnings
- This is an estimate. Real runtime changes with load, temperature, battery age, AC/DC output, and device behavior.
Share URL
Good fit when
- Capacity is in a larger outage/RV class, so the useful question is usually output limits, recharge speed, and weight rather than watt-hours alone.
- Tracked AC output is high enough for many household plug-in loads, but surge still needs a separate check.
- Tracked solar input is 1,200 W before panel, weather, angle, and controller losses.
Watch out for
- Surge output is tracked, but device startup behavior should still be checked against the actual load.
- Still unknown in the source-backed record: dc output, usb-c output, weight.
- Weight is unknown, so portability should not be inferred from this model page yet.
- Confidence is not marked verified; keep the linked source context visible before making a purchase or emergency plan.
Related Arkpax Records
Nearby source-linked models from the same brand help you compare capacity, output, and unknown fields without leaving the data set.
Ark 1800W
1,500 Wh, 1,800 W AC output, confidence: Estimated.
Ark EVO 1800W
1,200 Wh, 1,800 W AC output, confidence: Estimated.
Core 1200W
1,024 Wh, 1,200 W AC output, confidence: Estimated.
Sources
- Arkpax Ark PRO 2400W official product page (official; checked 2026-08-27)
